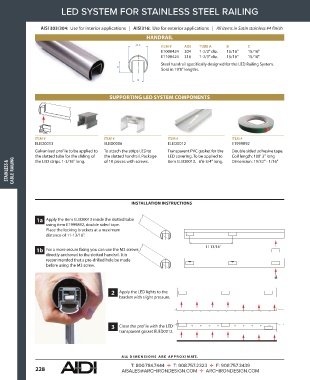

LED SYSTEM FOR STAINLESS STEEL RAILING

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

GLASS CLAMPSHANDRAIL
Ø A ITEM # AISI TUBE A B C
E1000424 304 1-2/3" dia. 15/16" 15/16"
E1100424 316 1-2/3" dia. 15/16" 15/16"
Steel handrail specifically designed for the LED Railing System.
C
Sold in 19'8" lengths.
B

SUPPORTING LED SYSTEM COMPONENTS

ITEM # ITEM # ITEM # ITEM #
ELED0013 ELED0006 ELED0012 E1999892
Galvanized profile to be applied to To attach the strips LED to Transparent PVC gasket for the Double sided adhesive tape.
the slotted tube for the sliding of the slotted handrail. Package LED covering. To be applied to Coil length: 108' 3" long
of 10 pieces with screws.
the LED strips. 1-3/16" long.
item ELED0013. 6'6-3/4" long.
Dimension: 19/32" - 1/16"
STAINLESS & CABLE RAILING

INSTALLATION INSTRUCTIONS

1a Apply the item ELED0013 inside the slotted tube
using item E1999892, double sided tape.
Place the locking brackets at a maximum
distance of 11-13/16”.

11 13/16”
1b For a more secure fixing you can use the M3 screws
directly anchored to the slotted handrail. It is
recommended that a pre-drilled hole be made
before using the M3 screw.

2 Apply the LED lights to the
bracket with slight pressure.

3 Close the profile with the LED
transparent gasket ELED0012.

A LL DIMENSIONS ARE APPR O XIM ATE .
