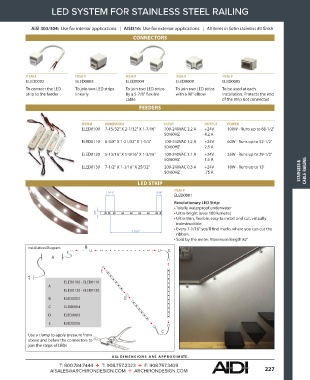

LED SYSTEM FOR STAINLESS STEEL RAILING

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

GLASS CLAMPSONNECTORS
C

ITEM # ITEM # ITEM # ITEM # ITEM #
ELED0002 ELED0003 ELED0004 ELED0009 ELED0005
To connect the LED To join two LED strips To join two LED strips To join two LED strips To be used at each
strip to the feeder linearly by a 5-7/8" flexible with a 90° elbow installation. Protects the end
cable of the strip not connected
FEEDERS
GLASS CLAMPS

ITEM # DIMENSION INPUT OUTPUT POWER
ELED0100 7-15/32" X 2-1/32" X 1-7/16" 100-240VAC 2.2 A +24V 100W - Runs up to 88-1/2'
50/60HZ 4.2 A
ELED0110 6-3/8" X 1-21/32" X 1-1/4" 100-240VAC 1.2 A +24V 60W - Runs up to 52-1/2'
50/60HZ 2.5 A
ELED0120 5-13/16" X 1-9/16" X 1-3/16" 100-240VAC 1.1 A +24V 35W - Runs up to 29-1/2'
50/60HZ 1.5 A
ELED0130 7-1/2" X 1-3/16" X 25/32" 200-240VAC 0.3 A +24V 18W - Runs up to 13'
50/60HZ .75 A STAINLESS & CABLE RAILING
GLASS CLAMPSLED STRIP
ITEM #
1 3/16” 9/16”
ELED0001
Revolutionary LED Strip:
• Totally waterproof underwater
3/8” • Ultra-bright (over 180 lumens)
• Ultra-thin, flexible, easy to install and cut, virtually
indestructible
• Every 7-1/16" you’ll find marks where you can cut the
7 1/16”
ribbon.
• Sold by the meter. Maximum length 82'
Installation Diagram B
C
A

E

ELED0100 - ELED0110
A
ELED0120 - ELED0130
B ELED0002 D
C ELED0004
D ELED0003

E ELED0005
C
Use a clamp to apply pressure from
above and below the connectors to
join the strips of LEDs

A LL DIMENSIONS ARE APPR O XIM ATE .
