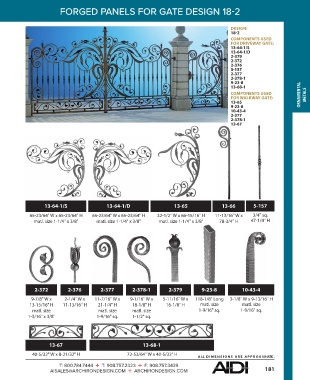

FORGED PANELS FOR GATE DESIGN 182

DESIGN:
182
COMPONENTS USED
FOR DRIVEWAY GATE:
13-64-1/S
13-64-1/D
2-379
2-372
2-376
5-157
2-377
2-378-1
9-23-8
13-68-1
COMPONENTS USED ORNAMENTAL METALS
FOR WALKWAY GATE:
13-65
9-23-8
10-43-4
2-377
2-378-1
13-67

13-64-1/S 13-64-1/D 13-65 13-66 5-157

65-23/64" W x 65-23/64" H 65-23/64" W x 65-23/64" H 32-1/2" W x 66-15/16" H 11-13/16" W x 3/4" sq.
matl. size 1-1/4" x 3/8" matl. size 1-1/4" x 3/8" matl. size 1-1/4" x 3/8" 78-3/4" H 47-1/4" H

2-372 2-376 2-377 2-378-1 2-379 9-23-8 10-43-4
9-7/8" W x 2-1/4" W x 11-7/16" W x 9-1/16" W x 5-11/16" W x 118-1/8" Long 3-1/8" W x 9-13/16" H
13-15/16" H 11-13/16" H 21-1/4" H 18-1/8" H 16-1/8" H matl. size matl. size
matl. size matl. size matl. size 1-9/16" sq. 1-9/16" sq.
1-3/16" x 3/8" 1-9/16" sq. 1-1/2" sq.

13-67 13-68-1
40-5/32" W x 8-21/32" H 72-53/64" W x 40-5/32" H
A LL DIMENSIONS ARE APPR O XIM ATE .
