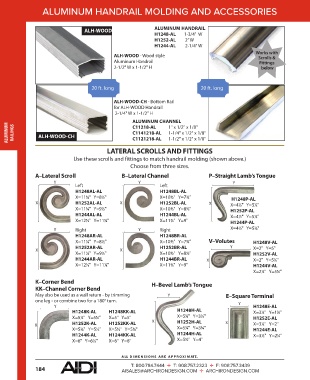

ALUMINUM HANDRAIL MOLDING AND ACCESSORIES

ALH-WOOD ALUMINUM HANDRAIL
H1248-AL 1-3/4" W
H1252-AL 2” W
H1244-AL 2-1/4" W
Works with
ALH-WOOD - Wood style Scrolls &
Aluminum Handrail Fittings
2-1/2" W x 1-1/2" H below

20 ft. long 20 ft. long

ALH-WOOD-CH - Bottom Rail
for ALH-WOOD Handrail
2-1/4" W x 1-1/2" H
ALUMINUM CHANNEL
ALUMINUM RAILINGS ALH-WOOD-CH C11218-AL 1" x 1/2" x 1/8"
C1141218-AL
1-1/4" x 1/2" x 1/8"
C1121218-AL
1-1/2" x 1/2" x 1/8"
LATERAL SCROLLS AND FITTINGS
Use these scrolls and fittings to match handrail molding (shown above.)
Choose from three sizes.
A–Lateral Scroll B–Lateral Channel P–Straight Lamb’s Tongue
Y Y Y
Left Left
H1248AL-AL H1248BL-AL
X=11¼" Y=8½" X=10½" Y=7¾" H1248P-AL
X H1252AL-AL X H1252BL-AL X X=4½" Y=5¼"
X=11¼" Y=9½" X=10½" Y=8½" H1252P-AL
H1244AL-AL H1244BL-AL X=4½" Y=5¼"
X=12½" Y=11¼" X=11¾" Y=9" H1244P-AL
Y Right Y Right X=4½" Y=5¾"
H1248AR-AL H1248BR-AL
X=11¼" Y=8½" X=10½" Y=7¾" V–Volutes H1248V-AL
H1252AR-AL H1252BR-AL Y X=2" Y=5"
X X
X=11¼" Y=9½" X=10½" Y=8½" H1252V-AL
H1244AR-AL H1244BR-AL X X=2" Y=5¼"
X=12½" Y=11¼" X=11¾" Y=9" H1244V-AL
X=2¼" Y=5¼"

K–Corner Bend H–Bevel Lamb’s Tongue
KK–Channel Corner Bend
May also be used as a wall return - by trimming Y E–Square Terminal
one leg - or combine two for a 180° turn. Y
Y H1248E-AL
H1248K-AL H1248KK-AL H1248H-AL X=3¼" Y=1¾"
X=5¼" Y=5¼" X=5" Y=5" X=5¼" Y=3½" H1252E-AL
X H1252K-AL H1252KK-AL X H1252H-AL X X=3¼" Y=2"
X=5¾" Y=5½" X=5½" Y=5¼" X=5¼" Y=3¾" H1244E-AL
H1244K-AL H1244KK-AL H1244H-AL X=3½" Y=2¼"
X=6" Y=6½" X=6" Y=6" X=5½" Y=4"

A LL DIMENSIONS ARE APPR O XIM ATE .
