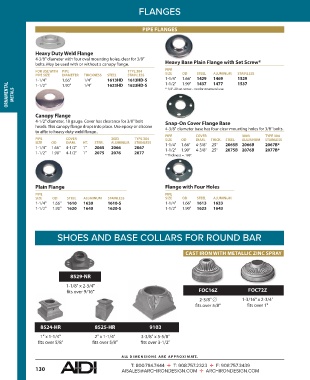

Page 132 - Catalog

FLANGES

PIPE FLANGES

Heavy Duty Weld Flange
4-3/8" diameter with four oval mounting holes, clear for 3/8"
bolts. May be used with or without a canopy flange. Heavy Base Plain Flange with Set Screw*
PIPE
FOR USE WITH PIPE TYPE 304
PIPE SIZE DIAMETER THICKNESS STEEL STAINLESS SIZE OD STEEL ALUMINUM STAINLESS
1-1/4" 1.66" 1/4" 1613HD 1613HD-S 1-1/4" 1.66" 1429 1469 1529
ORNAMENTAL METALS * 1/4"-20 set screw - not for structural use.
1477
1437
1.90"
1537
1-1/2"
1623HD 1623HD-S
1/4"
1.90"
1-1/2"
Canopy Flange
4-1/2" diameter, 18 gauge. Cover has clearance for 3/8" bolt Snap-On Cover Flange Base
heads. This canopy flange drops into place. Use epoxy or silicone 4-3/8" diameter base has four clear mounting holes for 3/8" bolts.
to affix to heavy duty weld flange..
PIPE COVER 3003 TYPE 304
PIPE COVER 3003 TYPE 304 SIZE OD DIAM. THICK. STEEL ALUMINUM STAINLESS
SIZE OD DIAM. HT. STEEL ALUMINUM STAINLESS 1-1/4" 1.66" 4-3/8" .25" 2065B 2066B 2067B*
1-1/4" 1.66" 4-1/2" 1" 2065 2066 2067 1-1/2" 1.90" 4-3/8" .25" 2075B 2076B 2077B*
1-1/2" 1.90" 4-1/2" 1" 2075 2076 2077
* Thickness = .188".

Plain Flange Flange with Four Holes

PIPE PIPE
SIZE OD STEEL ALUMINUM STAINLESS SIZE OD STEEL ALUMINUM
1-1/4" 1.66" 1610 1630 1610-S 1-1/4" 1.66" 1613 1633
1-1/2" 1.90" 1620 1640 1620-S 1-1/2" 1.90" 1623 1643

SHOES AND BASE COLLARS FOR ROUND BAR

CAST IRON WITH METALLIC ZINC SPRAY

8529-NR

1-1/8" x 2-3/4"
fits over 9/16" FOC16Z FOC72Z

2-3/8" 1-3/16" x 2-3/4"
fits over 5/8" fits over 1"

8524-HR 8525-HR 9103

1" x 1-1/4" 2" x 1-1/4" 3-3/8" x 5-5/8"
fits over 5/8" fits over 5/8" fits over 3-1/2"

A LL DIMENSIONS ARE APPR O XIM ATE .
