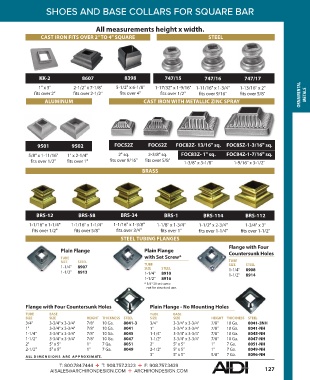

SHOES AND BASE COLLARS FOR SQUARE BAR

All measurements height x width.

CAST IRON FITS OVER 2" TO 4" SQUARE STEEL

KK-2 8607 8398 747/15 747/16 747/17

1" x 5" 2-1/2" x 7-1/8" 5-1/2" x 6-1/8" 1-17/32" x 1-9/16" 1-11/16" x 1-3/4" 1-13/16" x 2"
fits over 2" fits over 2-1/2" fits over 4" fits over 1/2" fits over 9/16" fits over 5/8" ORNAMENTAL METALS
ALUMINUM CAST IRON WITH METALLIC ZINC SPRAY

9501 9502 FOC52Z FOC62Z FOC82Z- 13/16" sq. FOC85Z-1-3/16" sq.
5/8" x 1-11/16" 1" x 2-1/4" 2" sq. 2-3/8" sq. FOC83Z- 1" sq. FOC84Z-1-7/16" sq.
fits over 1/2" fits over 1" fits over 9/16" fits over 5/8" 1-3/8" x 3-1/8" 1-9/16" x 3-1/2"
BRASS

BRS-12 BRS-58 BRS-34 BRS-1 BRS-114 BRS-112

1-1/16" x 1-1/4" 1-1/16" x 1-1/4" 1-1/16" x 1-3/8" 1-1/8" x 1-3/4" 1-1/2" x 2-3/4" 1-3/4" x 3"
fits over 1/2" fits over 5/8" fits over 3/4" fits over 1" fits over 1-1/4" fits over 1-1/2"
STEEL TUBING FLANGES

Flange with Four
Plain Flange Plain Flange Countersunk Holes
TUBE with Set Screw*
SIZE STEEL TUBE
1-1/4" 8907 TUBE STEEL SIZE STEEL
SIZE
1-1/2" 8913 1-1/4" 8910 1-1/4" 8908
8914
1-1/2"
1-1/2" 8916
* 1/4"-20 set screw
not for structural use.

Flange with Four Countersunk Holes Plain Flange - No Mounting Holes
TUBE BASE TUBE BASE
SIZE SIZE HEIGHT THICKNESS STEEL SIZE SIZE HEIGHT THICKNESS STEEL
3/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041-3 3/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041-3NH
1" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041 1" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041-NH
1-1/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8045 1-1/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8045-NH
1-1/2" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8047 1-1/2" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8047-NH
2" 5" x 5" 1" 7 Ga. 8051 2" 5" x 5" 1" 7 Ga. 8051-NH
2-1/2" 5" x 5" 1" 7 Ga. 8049 2-1/2" 5" x 5" 1" 7 Ga. 8049-NH
3" 5" x 5" 5/8" 7 Ga. 8096-NH
A LL DIMENSIONS ARE APPR O XIM ATE .
