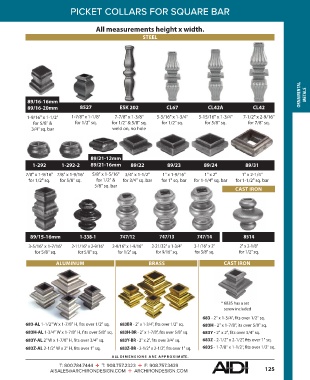

Page 127 - Catalog

PICKET COLLARS FOR SQUARE BAR

All measurements height x width.

STEEL

ORNAMENTAL METALS

89/16-16mm
89/16-20mm 8527 ESK 202 CL67 CL42A CL42

1-9/16" x 1-1/2" 1-7/8" x 1-1/8" 7-7/8" x 1-3/8" 5-5/16" x 1-3/4" 5-15/16" x 1-3/4" 7-1/2" x 2-9/16"
for 5/8" & for 1/2" sq. for 1/2" & 5/8" sq. for 1/2" sq. for 5/8" sq. for 7/8" sq.
3/4" sq. bar weld on, no hole

89/21-12mm
1-292 1-292-2 89/21-16mm 89/22 89/23 89/24 89/31
7/8" x 1-9/16" 7/8" x 1-9/16" 5/8" x 1-5/16" 3/4" x 1-1/2" 1" x 1-9/16" 1" x 2" 1" x 2-1/4"
for 1/2" sq. for 5/8" sq. for 1/2" & for 3/4" sq. bar for 1" sq. bar for 1-1/4" sq. bar for 1-1/2" sq. bar
5/8" sq. bar
CAST IRON

89/15-16mm 1-338-1 747/12 747/13 747/14 8514

3-5/16" x 1-7/16" 2-11/16" x 2-9/16" 2-9/16" x 1-9/16" 2-21/32" x 1-3/4" 3-1/16" x 2" 2" x 2-1/8"
for 5/8" sq. for 5/8" sq. for 1/2" sq. for 9/16" sq. for 5/8" sq. for 1/2" sq.

ALUMINUM BRASS CAST IRON

* 683S has a set
screw included
683 - 2" x 1-3/4", ts over 1/2" sq.
683-AL 1-1/2" W x 1-7/8" H, ts over 1/2" sq. 683BR - 2" x 1-3/4", ts over 1/2" sq. 683H - 2" x 1-7/8", its over 5/8" sq.
683H-AL 1-3/4" W x 1-7/8" H, ts over 5/8" sq. 683H-BR - 2" x 1-7/8", ts over 5/8" sq. 683Y - 2" x 2", ts over 3/4" sq.
683Y-AL 2" W x 1-7/8" H, ts over 3/4" sq. 683Y-BR - 2" x 2", ts over 3/4" sq. 683Z - 2-1/2" x 2-1/2", ts over 1" sq.
683Z-AL 2-1/2" W x 2" H, ts over 1" sq. 683Z-BR - 2-1/2" x 2-1/2", ts over 1" sq. 683S - 1-7/8" x 1-1/2", ts over 1/2" sq.
A LL DIMENSIONS ARE APPR O XIM ATE .
