P. 112

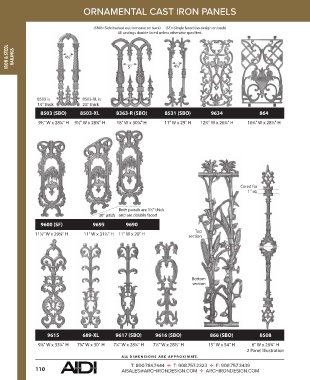

ORNAMENTAL CAST IRON PANELS
(SBO)=Side backed out (concave on back) (SF)=Single faced (no design on back)
All castings double faced unless otherwise specied.
IRON & STEEL RAILINGS 4½" 5" 4¾"
8503 is 8503-XL is
1¼" thick 2¼" thick
8503 (SBO) 8503-XL 8363-R (SBO) 8531 (SBO) 9634 864
9½" W x 28¼" H 9½" W x 28¼" H 18" W x 30¾" H 11" W x 29" H 12½" W x 26¾" H 16¾" W x 28½" H
Cored for
1" sq.
Both panels are 1½" thick
30° pitch and are double faced
9600 (SF) 9695 9690
Top
11¼" W x 29⅜" H 11" W x 31½" H 11" W x 29" H section
Bottom
section
9615 689-XL 9617 (SBO) 9616 (SBO) 866 (SBO) 8508
9⅛" W x 33¼" H 7¼" W x 30" H 7¼" W x 28¼" H 7½" W x 28½" H 15" W x 54" H 6" W x 26¾" H
2 Panel Illustration
A LL DIMENSIONS ARE APPR O XIM ATE .
T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
110 AISALES@ARCHIRONDESIGN.COM ARCHIRONDESIGN.COM
