P. 113

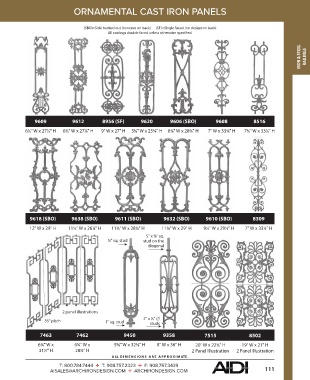

ORNAMENTAL CAST IRON PANELS
(SBO)=Side backed out (concave on back) (SF)=Single faced (no design on back)
All castings double faced unless otherwise specied.
IRON & STEEL RAILINGS
9609 9612 8956 (SF) 9620 9606 (SBO) 9608 8516
6¼" W x 27½" H 6¾" W x 27¼" H 9" W x 27" H 5¼" W x 25⅝" H 8¾" W x 28¾" H 7" W x 33¾" H 7¾" W x 33¼" H
9618 (SBO) 9638 (SBO) 9611 (SBO) 9632 (SBO) 9610 (SBO) 8309
12" W x 29" H 11½" W x 26¼" H 11¾" W x 28¾" H 11¾" W x 29" H 9¼" W x 29½" H 7" W x 33¼" H
5" x ¾" sq.
¾" sq. stud stud on the
diagonal
2 panel illustrations
35° pitch 1" sq. stud 2" x ½"
studs
7463 7462 9450 9358 7515 8502
6¾" W x 6¾" W x 5⅝" W x 32⅝" H 8" W x 36" H 20" W x 22¾" H 19" W x 21" H
31½" H 28½" H 2 Panel Illustration 2 Panel Illustration
A LL DIMENSIONS ARE APPR O XIM ATE .
