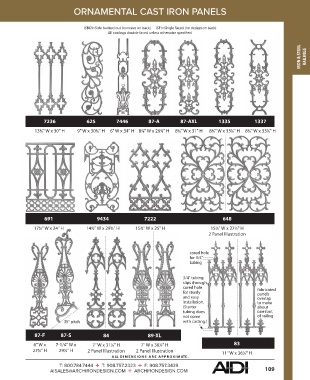

ORNAMENTAL CAST IRON PANELS
(SBO)=Side backed out (concave on back) (SF)=Single faced (no design on back)
All castings double faced unless otherwise specied.
IRON & STEEL RAILINGS
7236 625 7446 87-A 87-AXL 1335 1337
13¾" W x 30" H 9" W x 30¾" H 6" W x 34" H 8⅞" W x 26¾" H 8¾" W x 31" H 8¾" W x 33¼" H 8¾" W x 33¼" H
691 9434 7222 648
17¼" W x 24" H 14½" W x 29¾" H 15¾" W x 25" H 15¼" W x 27½" H
2 Panel Illustration
cored hole
for 3/4"
tubing
3/4" tubing
slips through
cored hole fabricated
for sturdy panels
and easy overlap
installation. to make
(Starter about
tubing does one foot
not come of railing
35° pitch with casting.)
87-F 87-S 84 89-XL
6" W x 7-1/4" W x 7" W x 31½" H 7" W x 30½" H 83
27¾" H 29½" H 2 Panel Illustration 2 Panel Illustration 11" W x 36½" H
A LL DIMENSIONS ARE APPR O XIM ATE .
