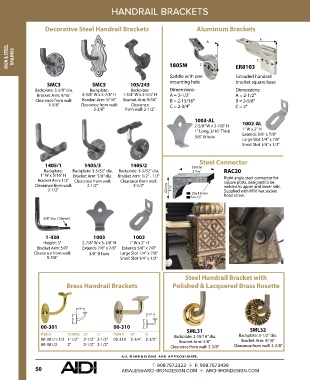

Page 52 - CATALOG

HANDRAIL BRACKETS

Decorative Steel Handrail Brackets Aluminum Brackets

A
A
IRON & STEEL RAILINGS 1805M C B C B

Extruded handrail
Saddle with one ER8103
SMC3 SMC5 103/243 mounting hole bracket square base
Backplate: 3-3/8" dia. Backplate: Backplate: Dimensions: Dimensions:
Bracket Arm: 9/16" 3-3/8" W x 5-7/8" H 1-3/4" W x 2-1/4" H A = 2-1/2" A = 2-1/2"
Clearance from wall: Bracket Arm: 9/16" Bracket Arm: 9/16" B = 2-15/16" B = 2-5/8"
3-3/8" Clearance from wall: Clearance C = 2-3/4" C = 2"
3-3/8" from wall: 2-1/2"

1003-AL
2-5/8" W x 2-7/8" H 1002-AL
1" Long, 3/16" Thick 1" W x 2" H
3/8" Ø hole Extends 5/8" x 7/8"
Large Slot 1/4" x 7/8"
Small Slot 1/4" x 1/2"

Steel Connector
1405/1 1405/3 1405/2 75mm
Backplate: Backplate: 3-5/32" dia. Backplate: 3-5/32" dia. 2 15 /16” RAC20
1" W x 5/16" H Bracket Arm: 5/8" dia. Bracket Arm: 1/2" - 1/2" Right angle steel connector for
Bracket Arm: 1/2" Clearance from wall: Clearance from wall: square posts, designed to be
Clearance from wall: 2-1/2" 2-1/2" welded to upper and lower rails.
2-1/2" 47mm 1 7 /8”  20x12mm Supplied with M10 hex socket
 3 /4 x 1 /2” head screw.

3/8" dia. (10mm)

1-430 1003 1002
Height: 5" 2-7/8" W x 3-1/8" H 1" W x 2" H
Bracket Arm: 5/8" Extends 7/8" x 7/8" Extends 5/8" x 7/8"
Clearance from wall: 3/8" Ø hole Large Slot 1/4" x 7/8"
5-3/8" Small Slot 1/4" x 1/2"

Steel Handrail Bracket with
Brass Handrail Brackets Polished & Lacquered Brass Rosette

00-301 00-310 SML32
SML31
ITEM # TUBING CP D ITEM # CP D Backplate: 2-15/16" dia. Backplate: 3-1/2" dia.
00-301/1-1/2 1-1/2" 2-1/2" 2-1/2" 00-310 2-1/4" 2-1/2" Bracket Arm: 5/8" Bracket Arm: 9/16"
00-301/2 2" 2-1/2" 2-1/2" Clearance from wall: 3-3/8" Clearance from wall: 3-3/8"

A LL DIMENSIONS ARE APPR O XIM ATE .
