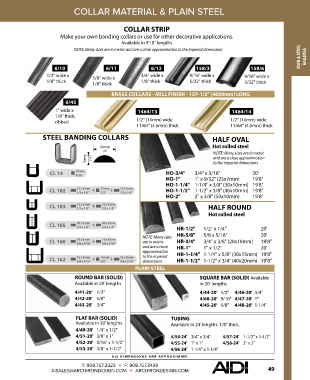

Page 51 - CATALOG

COLLAR MATERIAL & PLAIN STEEL

COLLAR STRIP
Make your own banding collars or use for other decorative applications.
Available in 9'10" lengths
IRON & STEEL RAILINGS
NOTE: Many sizes are in metric and are a close approximation to the imperial dimensions

6/10 6/11 6/12 158/3 158/6
1/2" wide x 5/8" wide x 3/4" wide x 9/16" wide x 9/16" wide x
1/8" thick 1/8" thick 1/8" thick 5/32" thick 5/32" thick

BRASS COLLARS - MILL FINISH - 157-1/2" (4000mm) LONG
6/45

1" wide x 1464/13 1464/14
1/8" thick,
ribbed 1/2" (14mm) wide 1/2" (14mm) wide
11/64" (4.5mm) thick 11/64" (4.5mm) thick
STEEL BANDING COLLARS HALF OVAL

16mm Hot rolled steel
5/8" NOTE: Many sizes are in metric
5mm 3/16" and are a close approximation
to the imperial dimensions

CL 14 14 mm HO-3/4" 3/4" x 3/16" 20'
9/16”
HO-1" 1" x 9/32" (25x7mm) 19'8"
HO-1-1/4" 1-1/4" x 3/8" (30x10mm) 19'8"
CL 102 12 x 6 mm + 12 mm + 12 x 6 mm HO-1-1/2" 1-1/2" x 3/8" (40x10mm) 19'8"
1/2”
1/2 x 1/4”
1/2 x 1/4”
HO-2" 2" x 3/8" (50x10mm) 19'8"
CL 103 12 x 6 mm + 12 x 6 mm HALF ROUND
1/2 x 1/4”
1/2 x 1/4”
Hot rolled steel
CL 105 20 x 6 mm + 20 x 6 mm HR-1/2" 1/2" x 1/4" 20'
3/4 x 1/4”
3/4 x 1/4”
HR-5/8" 5/8 x 5/16" 20'
NOTE: Many sizes
CL 160 16 x 8 mm + 16 x 8 mm are in metric HR-3/4" 3/4" x 3/8" (20x10mm) 19'8"
5/8 x 5/16”
5/8 x 5/16”
and are a close HR-1" 1" x 1/2" 20'
approximation HR-1-1/4" 1-1/4" x 5/8" (30x15mm) 19'8"
CL 162 16 x 8 mm + 16 mm + 16 x 8 mm to the imperial HR-1-1/2" 1-1/2" x 3/4" (40x20mm) 19'8"
dimensions
5/8 x 5/16”
5/8 x 5/16”
5/8”
PLAIN STEEL
ROUND BAR (SOLID) SQUARE BAR (SOLID) Available
Available in 20' lengths in 20' lengths
4/41-20' 1/2" 4/44-20' 1/2" 4/46-20' 3/4"
4/42-20' 5/8" 4/68-20' 9/16" 4/47-20' 1"
4/43-20' 3/4" 4/45-20' 5/8" 4/48-20' 1-1/4"

FLAT BAR (SOLID) TUBING
Available in 20' lengths Available in 24' lengths. 1/8" thick.
4/49-20' 1/4" x 1/2"
4/51-20' 3/8" x 1" 4/54-24' 3/4" x 3/4" 4/57-24' 1-1/2" x 1-1/2"
4/52-20' 5/16" x 1-1/2" 4/55-24' 1" x 1" 4/58-24' 2" x 2"
4/53-20' 3/8" x 1-1/2" 4/56-24' 1-1/4" x 1-1/4"
A LL DIMENSIONS ARE APPR O XIM ATE .
