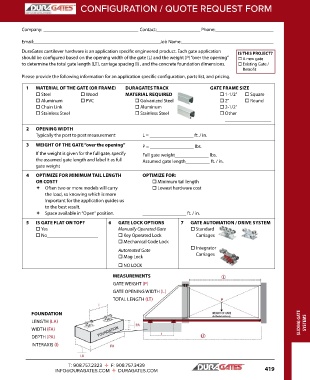

CONFIGURATION / QUOTE REQUEST FORM

Company: _______________________________________ Contact:__________________ Phone:________________________

Email: ____________________________________________________Job Name:______________________________________
DuraGates cantilever hardware is an application specific engineered product. Each gate application IS THIS PROJECT?
should be configured based on the opening width of the gate (L) and the weight (P) “over the opening” o A new gate
to determine the total gate length (LT), carriage spacing (I) , and the concrete foundation dimensions. o Existing Gate /
Retrofit
Please provide the following information for an application specific configuration, parts list, and pricing.

1 MATERIAL OF THE GATE (OR FRAME) DURAGATES TRACK GATE FRAME SIZE
o Steel o Wood MATERIAL REQUIRED o 1-1/2" o Square
o Aluminum o PVC o Galvanized Steel o 2" o Round
o Chain Link o Aluminum o 2-1/2"
o Stainless Steel o Stainless Steel o Other
___________________
2 OPENING WIDTH
Typically the post to post measurement L = __________________ ft. / in.
3 WEIGHT OF THE GATE “over the opening” P = __________________ lbs.

If the weight is given for the full gate, specify Full gate weight______________ lbs.
the assumed gate length and label it as full Assumed gate length__________ ft. / in.
gate weight
4 OPTIMIZE FOR MINIMUM TAIL LENGTH OPTIMIZE FOR:
OR COST? o Minimum tail length
ª Often two or more models will carry o Lowest hardware cost
the load, so knowing which is more
important for the application guides us
to the best result.
ª Space available in “Open” position. __________________ ft. / in.
5 IS GATE FLAT ON TOP? 6 GATE LOCK OPTIONS 7 GATE AUTOMATION / DRIVE SYSTEM
o Yes Manually Operated Gate o Standard
o No_____________________ o Key Operated Lock Carriages
o Mechanical Code Lock

Automated Gate o Integrator
o Mag Lock Carriages

o NO LOCK
MEASUREMENTS
GATE WEIGHT (P)
GATE OPENING WIDTH (L)
TOTAL LENGTH (LT)

FOUNDATION
LENGTH (LA) SLIDING GATE SYSTEMS
WIDTH (FA)
DEPTH (PA)
INTERAXIS (I)
