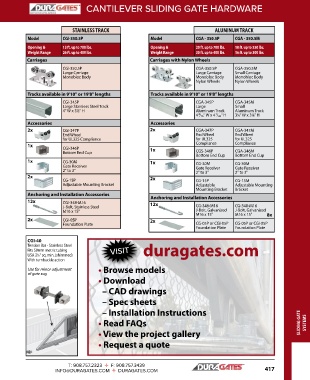

Page 419 - CATALOG

CANTILEVER SLIDING GATE HARDWARE

STAINLESS TRACK ALUMINUM TRACK
Model CGI-350.5P Model CGA - 350.5P CGA - 350.5M

Opening & 13 ft. up to 700 lbs. Opening & 20 ft. up to 700 lbs. 10 ft. up to 550 lbs.
Weight Range 26 ft. up to 400 lbs. Weight Range 30 ft. up to 400 lbs. 16 ft. up to 300 lbs.
Carriages Carriages with Nylon Wheels
CGI-350.5P CGA-350.5P CGA-350.5M
Large Carriage Large Carriage Small Carriage
Monobloc Body Monobloc Body Monobloc Body
Nylon Wheels Nylon Wheels

Tracks available in 9'10" or 19'8" lengths Tracks available in 9'10" or 19'8" lengths
CGI-345P CGA-345P CGA-345M
Large Stainless Steel Track Large Small
4" W x 3½" H Aluminum Track Aluminum Track
4³/₁₆" W x 4¹/₃₂" H 3¼" W x 3⅛" H
Accessories Accessories
2x CGI-347P 2x CGA-347P CGA-347M
End Wheel End Wheel End Wheel
for UL325 Compliance for UL325 for UL325
1x Compliance Compliance
CGI-346P 1x
Bottom End Cup CGS-346P CGA-346M
Bottom End Cup Bottom End Cup
1x CG-30M 1x
Gate Receiver CG-30M CG-30M
Gate Receiver
Gate Receiver
2" to 3" 2" to 3" 2" to 3"
2x 2x
CG-15P CG-15P CG-15M
Adjustable Mounting Bracket Adjustable Adjustable Mounting
Mounting Bracket Bracket
Anchoring and Installation Accessories Anchoring and Installation Accessories
12x CGI-348-M16 12x
J-Bolt, Stainless Steel CG-348-M16 CG-348-M16
M16 x 15" J-Bolt, Galvanized J-Bolt, Galvanized
M16 x 15" M16 x 15" 8x
2x CGI-05P 2x
Foundation Plate CG-05P or CGI-05P CG-05P or CGI-05P
Foundation Plate Foundation Plate

CGI-40
Tension Bar - Stainless Steel
Fits 50mm metric tubing VISIT duragates.com
USA 2½" sq. min. (shimmed)
With turnbuckle action

Use for minor adjustment • Browse models
of gate sag
• Download

– CAD drawings
– Spec sheets

– Installation Instructions

• Read FAQs SLIDING GATE SYSTEMS
• View the project gallery

• Request a quote

T: 908.757.2323 ✛ F: 908.757.3439 ®
