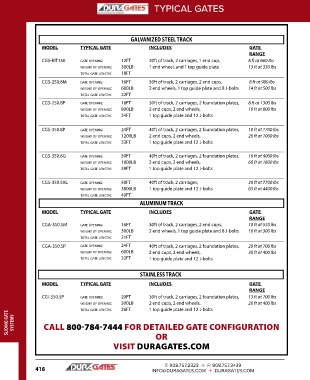

Page 420 - CATALOG

TYPICAL GATES

GALVANIZED STEEL TRACK
MODEL TYPICAL GATE INCLUDES GATE
RANGE
CGS-KIT150 gate opening: 12Ft 20ft of track, 2 carriages, 1 end cup, 8 ft at 660 lbs
WeigHt oF opening: 300lb 1 end wheel, and 1 top guide plate 13 ft at 330 lbs
total gate lengtH: 18Ft
CGS-250.8M gate opening: 16Ft 30ft of track, 2 carriages, 2 end cups, 8 ft at 900 lbs
WeigHt oF opening: 600lb 2 end wheels, 1 top guide plate and 8 J-bolts 14 ft at 500 lbs
total gate lengtH: 22Ft
CGS-250.8P gate opening: 18Ft 30ft of track, 2 carriages, 2 foundation plates, 8 ft at 1300 lbs
WeigHt oF opening: 800lb 2 end cups, 2 end wheels, 19 ft at 800 lbs
total gate lengtH: 24Ft 1 top guide plate and 12 J-bolts

CGS-350.8P gate opening: 24Ft 40ft of track, 2 carriages, 2 foundation plates, 10 ft at 1700 lbs
WeigHt oF opening: 1200lb 2 end cups, 2 end wheels, 26 ft at 1000 lbs
total gate lengtH: 33Ft 1 top guide plate and 12 J-bolts

CGS-350.8G gate opening: 30Ft 40ft of track, 2 carriages, 2 foundation plates, 16 ft at 4000 lbs
WeigHt oF opening: 1800lb 2 end cups, 2 end wheels, 60 ft at 1800 lbs
total gate lengtH: 39Ft 1 top guide plate and 12 J-bolts

CGS-350.5XL gate opening: 30Ft 40ft of track, 2 carriages, 30 ft at 7700 lbs
WeigHt oF opening: 3800lb 1 top guide plate and 12 J-bolts 65 ft at 4400 lbs
total gate lengtH: 40Ft
ALUMINUM TRACK

MODEL TYPICAL GATE INCLUDES GATE
RANGE
CGA-350.5M gate opening: 16Ft 30ft of track, 2 carriages, 2 end cups, 10 ft at 550 lbs
WeigHt oF opening: 300lb 2 end wheels, 1 top guide plate and 8 J-bolts 16 ft at 300 lbs
total gate lengtH: 21Ft

CGA-350.5P gate opening: 24Ft 40ft of track, 2 carriages, 2 foundation plates, 20 ft at 700 lbs
WeigHt oF opening: 600lb 2 end cups, 2 end wheels, 30 ft at 400 lbs
total gate lengtH: 32Ft 1 top guide plate and 12 J-bolts

STAINLESS TRACK
MODEL TYPICAL GATE INCLUDES GATE
RANGE
CGI-350.5P gate opening: 20Ft 30ft of track, 2 carriages, 2 foundation plates, 13 ft at 700 lbs
WeigHt oF opening: 300lb 2 end cups, 2 end wheels, 26 ft at 400 lbs
total gate lengtH: 26Ft 1 top guide plate and 12 J-bolts
SLIDING GATE SYSTEMS CALL 800-784-7444 FOR DETAILED GATE CONFIGURATION
