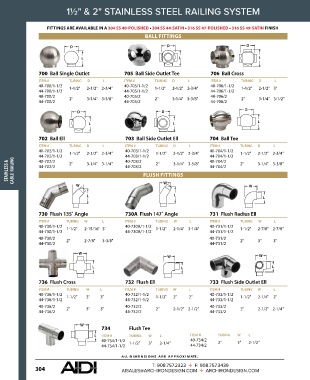

1½" & 2" STAINLESS STEEL RAILING SYSTEM

FITTINGS ARE AVAILABLE IN A 304 SS 40-POLISHED • 304 SS 44-SATIN • 316 SS 47-POLISHED • 316 SS 49-SATIN FINISH
BALL FITTINGS

D D D

L L L

700 Ball Single Outlet 705 Ball Side Outlet Tee 706 Ball Cross
ITEM # TUBING D L ITEM # TUBING D L ITEM # TUBING D L
40-700/1-1/2 1-1/2" 2-1/2" 2-3/4" 40-705/1-1/2 1-1/2" 2-1/2" 2-3/4" 40-706/1-1/2 1-1/2" 2-1/2" 3"
44-700/1-1/2 44-705/1-1/2 44-706/1-1/2
40-700/2 2" 3-1/4" 3-3/8" 40-705/2 2" 3-1/4" 3-3/8" 40-706/2 2" 3-1/4" 3-1/2"
44-700/2 44-705/2 44-706/2
D D D

L L L

702 Ball Ell 703 Ball Side Outlet Ell 704 Ball Tee
ITEM # TUBING D L ITEM # TUBING D L ITEM # TUBING D L
40-702/1-1/2 1-1/2" 2-1/2" 2-3/4" 40-703/1-1/2 1-1/2" 2-1/2" 2-3/4" 40-704/1-1/2 1-1/2" 2-1/2" 2-3/4"
44-702/1-1/2 44-703/1-1/2 44-704/1-1/2
40-703/2
40-702/2
40-704/2
STAINLESS & CABLE RAILING 44-702/2 2" 3-1/4" 3-1/4" 44-703/2 FLUSH FITTINGS 44-704/2 2" 3-1/4" 3-3/8"
3-1/4" 3-5/8"
2"
W W W

L L L

730 Flush 135˚ Angle 730A Flush 147˚ Angle 731 Flush Radius Ell
ITEM # TUBING W L ITEM # TUBING W L ITEM # TUBING W L
40-730/1-1/2 1-1/2" 2-15/16" 3" 40-730A/1-1/2 1-1/2" 2-1/4" 3-1/4" 40-731/1-1/2 1-1/2" 2-7/8" 2-7/8"
44-730/1-1/2 44-730A/1-1/2 44-731/1-1/2
40-730/2 2" 2-7/8" 3-3/8" 40-731/2 2" 3" 3"
44-730/2 44-731/2

W
W W
L L L

736 Flush Cross 732 Flush Ell 733 Flush Side Outlet Ell
ITEM # TUBING W L ITEM # TUBING W L ITEM # TUBING W L
40-736/1-1/2 1-1/2" 3" 3" 40-732/1-1/2 1-1/2" 2" 2" 40-733/1-1/2 1-1/2" 2-1/4" 2"
44-736/1-1/2 44-732/1-1/2 44-733/1-1/2
40-736/2 2" 3" 3" 40-732/2 2" 2-1/2" 2-1/2" 40-733/2 2" 2-1/2" 2-1/4"
44-736/2 44-732/2 44-733/2

W
734 Flush Tee
L ITEM # TUBING W L ITEM # TUBING W L
40-734/1-1/2 1-1/2" 3" 2-1/4" 40-734/2 2" 3" 2-1/2"
44-734/1-1/2 44-734/2

A LL DIMENSIONS ARE APPR O XIM ATE .
