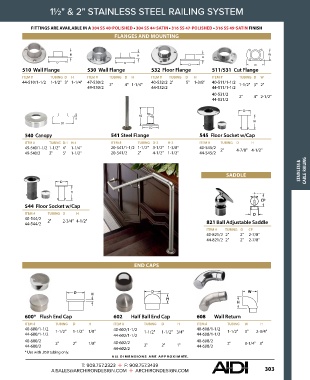

Page 305 - CATALOG

1½" & 2" STAINLESS STEEL RAILING SYSTEM

FITTINGS ARE AVAILABLE IN A 304 SS 40-POLISHED • 304 SS 44-SATIN • 316 SS 47-POLISHED • 316 SS 49-SATIN FINISH
FLANGES AND MOUNTING

510 Wall Flange 530 Wall Flange 532 Floor Flange 511/531 Cut Flange
ITEM # TUBING D H ITEM # TUBING D H ITEM # TUBING D H ITEM # TUBING D W
44-510/1-1/2 1-1/2" 3" 1-1/4" 47-530/2 2" 4" 1-1/4" 40-532/2 2" 5" 1-3/8" 40-511/1-1/2 1-1/2" 3" 2"
49-530/2 44-532/2 44-511/1-1/2
40-531/2 2" 4" 2-1/2"
44-531/2

540 Canopy 541 Steel Flange 545 Floor Socket w/Cap
ITEM # TUBING D-1 H-1 ITEM # TUBING D-2 H-2 ITEM # TUBING D H
49-540/1-1/2 1-1/2" 4" 1-1/4" 20-541/1-1/2 1-1/2" 3-1/2" 1-3/8" 40-545/2 2" 4-7/8" 4-1/2"
49-540/2 2" 5" 1-1/2" 20-541/2 2" 4-1/2" 1-1/2" 44-545/2
STAINLESS & CABLE RAILING

SADDLE

CP
544 Floor Socket w/Cap
ITEM # TUBING D H D
40-544/2 2" 2-3/4" 4-1/2"
44-544/2 821 Ball Adjustable Saddle
ITEM # TUBING D CP
40-821/2 2" 2" 2-7/8"
44-821/2 2" 2" 2-7/8"

END CAPS

D H D W
H
H

600* Flush End Cap 602 Half Ball End Cap 608 Wall Return
ITEM # TUBING D H ITEM # TUBING D H ITEM # TUBING W H
40-600/1-1/2 1-1/2" 1-1/2" 1/8" 40-602/1-1/2 40-608/1-1/2 1-1/2" 3" 2-3/4"
44-600/1-1/2 44-602/1-1/2 1-1/2" 1-1/2" 3/4" 44-608/1-1/2
40-600/2 2" 2" 1/8" 40-602/2 40-608/2 2" 3-1/4" 3"
44-600/2 44-602/2 2" 2" 1" 44-608/2
* Use with .050 tubing only.
A LL DIMENSIONS ARE APPR O XIM ATE .
