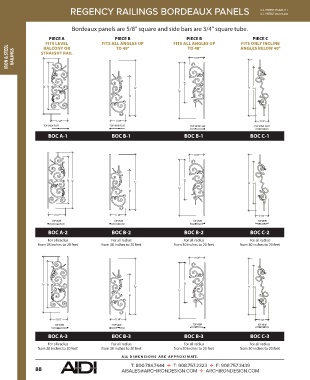

REGENCY RAILINGS BORDEAUX PANELS U.S. PATENT #5,820,111
U.S. PATENT #6,059,269

Bordeaux panels are 5/8" square and side bars are 3/4" square tube.

PIECE A PIECE B PIECE B PIECE C
FITS LEVEL FITS ALL ANGLES UP FITS ALL ANGLES UP ANGLES BELOW 40°
FITS ONLY INCLINE
IRON & STEEL RAILINGS STRAIGHT RAIL 11 1/4"
TO 48°
BALCONY OR
TO 48°

30"
42" 35" 42" 42" 31"
42"
30"

12 1/2" 11 1/4" 9 1/2"
TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT
BOC A-1 BOC B-1 BOC B-1 BOC C-1

11 1/4"

35" 42" 30"
42" 42" 31"
42"
30"

12 1/2" 11 1/4" 9 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW

BOC A-2 BOC B-2 BOC B-2 BOC C-2
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet

11 1/4"

42" 35" 42" 30" 42" 31"
42"
30"

12 1/2" 11 1/4" 9 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW

BOC A-3 BOC B-3 BOC B-3 BOC C-3
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet' from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet
A LL DIMENSIONS ARE APPR O XIM ATE .
