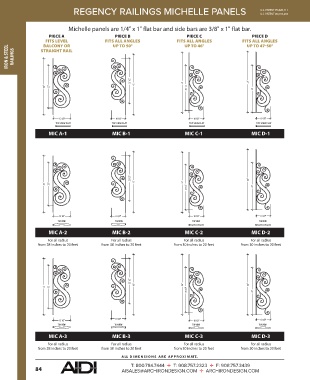

REGENCY RAILINGS MICHELLE PANELS U.S. PATENT #5,820,111
U.S. PATENT #6,059,269

Michelle panels are 1/4" x 1" flat bar and side bars are 3/8" x 1" flat bar.
PIECE A PIECE B PIECE C PIECE D
FITS LEVEL FITS ALL ANGLES FITS ALL ANGLES FITS ALL ANGLES
UP TO 50°
UP TO 4750°
UP TO 46°
BALCONY OR
IRON & STEEL RAILINGS STRAIGHT RAIL

33 1/2" 45" 45"
42" 32" 45" 33 1/2" 35"

12 1/2" 10 1/2" 10 1/2" 10 1/2"
TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT

MIC A-1 MIC B-1 MIC C-1 MIC D-1

33 1/2" 45"
42" 32" 45" 45"
33 1/2" 35"

12 1/2" 10 1/2" 10 1/2" 10 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW

MIC A-2 MIC B-2 MIC C-2 MIC D-2
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet

33 1/2"
42" 32" 45" 45" 45"
33 1/2" 35"

10 1/2"
12 1/2" 10 1/2" 10 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW
MIC A-3 MIC B-3 MIC C-3 MIC D-3
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet
A LL DIMENSIONS ARE APPR O XIM ATE .
T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
84 AISALES@ARCHIRONDESIGN.COM ARCHIRONDESIGN.COM
