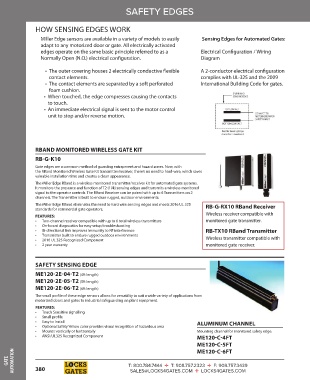

Page 382 - Catalog

SAFETY EDGES

HOW SENSING EDGES WORK

Miller Edge sensors are available in a variety of models to easily Sensing Edges for Automated Gates:
adapt to any motorized door or gate. All electrically activated
edges operate on the same basic principle referred to as a Electrical Conguration / Wiring
Normally Open (N.O.) electrical conguration. Diagram

• The outer covering houses 2 electrically conductive exible A 2-conductor electrical conguration
contact elements. complies with UL-325 and the 2009
• The contact elements are separated by a soft perforated International Building Code for gates.
foam cushion.
• When touched, the edge compresses causing the contacts
to touch.
• An immediate electrical signal is sent to the motor control
unit to stop and/or reverse motion.

RBAND MONITORED WIRELESS GATE KIT
RBGK10
Gate edges are a common method of guarding entrapment and hazard zones. Now, with
the RBand Monitored Wireless Gate Kit transmitter/receiver, there’s no need to hard-wire, which saves
valuable installation time and creates a clean appearance.
The Miller Edge RBand is a wireless monitored transmitter/receiver kit for automated gate systems.
It monitors the presence and function of T2 (10k) sensing edges and transmits a wireless monitored
signal to the operator controls. The RBand Receiver can be paired with up to 6 Transmitters on 2
channels. The Transmitter is built to endure rugged, outdoor environments.
The Miller Edge RBand eliminates the need to hard wire sensing edges and meets 2016 UL 325 RB-G-RX10 RBand Receiver
standards for commercial gate operators.
FEATURES: Wireless receiver compatible with
• Two-channel receiver compatible with up to 6 total wireless transmitters monitored gate transmitter.
• On-board diagnostics for easy setup/troubleshooting
• Bi-directional link improves immunity to RF interference RB-TX10 RBand Transmitter
• Transmitter built to endure rugged outdoor environments
• 2016 UL 325 Recognized Component Wireless transmitter compatible with
• 2 year warranty monitored gate receiver.

SAFETY SENSING EDGE

ME1202E04T2 (4ft length)
ME1202E05T2 (5ft length)
ME1202E06T2 (6ft length)
The small prole of these edge sensors allows for versatility to suit a wide variety of applications from
motorized doors and gates to industrial safeguarding on plant equipment.
FEATURES:
• Touch Sensitive signalling
• Small prole
• Easy to Install ALUMINUM CHANNEL
• Optional Safety Yellow color provides visual recognition of hazardous area
• Mounts vertically or horizontally Mounting channel for monitored safety edge.
• ANSI/UL325 Recognized Component ME120C4FT
ME120C5FT
ME120C6FT
