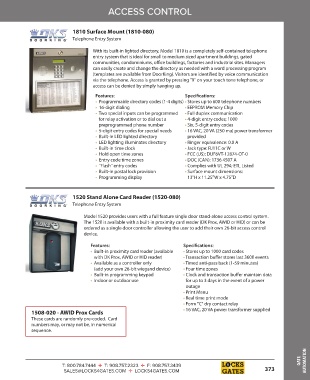

Page 375 - Catalog

ACCESS CONTROL

1810 Surface Mount (1810-080)
Telephone Entry System

With its built-in lighted directory, Model 1810 is a completely self-contained telephone
entry system that is ideal for small to medium sized apartment buildings, gated
communities, condominiums, oce buildings, factories and industrial sites. Managers
can easily create and change the directory as needed with a word processing program
(templates are available from DoorKing). Visitors are identied by voice communication
via the telephone. Access is granted by pressing "9" on your touch tone telephone, or
access can be denied by simply hanging up.

Features: Specifications:
• Programmable directory codes (1-4 digits) • Stores up to 600 telephone numbers
• 16-digit dialing • EEPROM Memory Chip
• Two special inputs can be programmed • Full duplex communication
for relay activation or to dial out a • 4-digit entry codes; 1000
preprogrammed phone number • Six, 5-digit entry codes
• 5-digit entry codes for special needs • 16 VAC, 20 VA (250 ma) power transformer
• Built-in LED lighted directory provided
• LED lighting illuminates directory • Ringer equivalence: 0.0 A
• Built-in time clock • Jack type: RJ11C or W
• Hold open time zones • FCC (US): DUF6VT-12874-OT-0
• Entry code time zones • DOC (CAN): 1736 4507 A
• "Flash" entry codes • Complies with UL 294; ETL Listed
• Built-in postal lock provision • Surface mount dimensions:
• Programming display 13"H x 11.25"W x 4.75"D

1520 Stand Alone Card Reader (1520-080)
Telephone Entry System

Model 1520 provides users with a full feature single door stand-alone access control system.
The 1520 is available with a built-in proximity card reader (DK Prox, AWID or HID) or can be
ordered as a single door controller allowing the user to add their own 26-bit access control
device.

Features: Specifications:
• Built-in proximity card reader (available • Stores up to 1000 card codes
with DK Prox, AWID or HID reader) • Transaction buer stores last 3600 events
• Available as a controller only • Timed anti-pass back (1-59 minutes)
(add your own 26-bit wiegand device) • Four time zones
• Built-in programming keypad • Clock and transaction buer maintain data
• Indoor or outdoor use for up to 3 days in the event of a power
outage
• Print Menu
• Real time print mode
• Form "C" dry contact relay

1508-020 - AWID Prox Cards • 16 VAC, 20 VA power transformer supplied
These cards are randomly pre-coded. Card
numbers may, or may not be, in numerical
sequence.

GATE AUTOMATION
T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
SALES@LOCKS4GATES.COM LOCKS4GATES.COM 373
