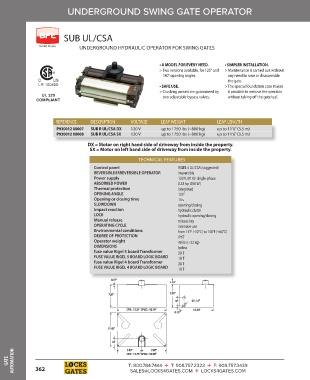

Page 364 - Catalog

UNDERGROUND SWING GATE OPERATOR

SUB UL/CSA

UNDERGROUND HYDRAULIC OPERATOR FOR SWING GATES

• A MODEL FOR EVERY NEED. • SIMPLER INSTALLATION.
> Two versions available, for 125° and > Maintenance is carried out without
180° opening angles. any need to raise or disassemble
the gate.
• SAFE USE. > The special foundation case makes
> Crushing protection guaranteed by it possible to remove the operator
two adjustable bypass valves. without taking o the gate leaf.

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT LEAF LENGTH
P930012 00007 SUB R UL/CSA DX 120 V up to 1750 lbs (~800 kg) up to 11’6’’ (3.5 m)
P930012 00008 SUB R UL/CSA SX 120 V up to 1750 lbs (~800 kg) up to 11’6’’ (3.5 m)
D
DX = Motor on right hand side of driveway from inside the property.X = Motor on right hand side of driveway from inside the property.
SX = Motor on left hand side of driveway from inside the property.
TECHNICAL FEATURES
Control panel RIGEL 4 UL/CSA (suggested)
REVERSIBLE/IRREVERSIBLE OPERATOR irreversible
Power supply 120 V, 60 Hz single-phase
ABSORBED POWER 0.33 hp (250 W)
Thermal protection integrated
OPENING ANGLE 125°
Opening or closing time 14 s
SLOWDOWN opening/closing
Impact reaction hydraulic clutch
LOCK hydraulic opening/closing
Manual release release key
OPERATING CYCLE intensive use
Environmental conditions from 14°F (-10°C) to 140°F (+60°C)
DEGREE OF PROTECTION IP67
Operator weight 48 lbs (~22 kg)
DIMENSIONS below
fuse value Rigel 5 board Transformer 2A T
FUSE VALUE RIGEL 5 BOARD LOGIC BOARD 1A T
fuse value Rigel 4 board Transformer 2A T
FUSE VALUE RIGEL 4 BOARD LOGIC BOARD 1A T

0.47"
1.18"
7.87" 7.87"
3.07" Ø 1.18"
CPS= 15.51" CPSG= 18.19" 11.10"
0.75"

11.42"

2.36" 7.87" 7.87"
