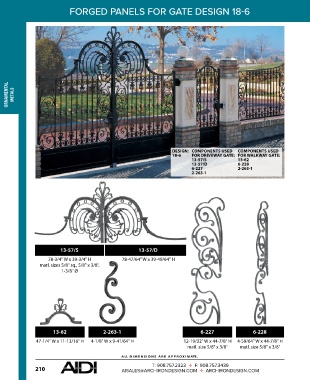

FORGED PANELS FOR GATE DESIGN 18-6
ORNAMENTAL METALS
DESIGN: COMPONENTS USED COMPONENTS USED
18-6 FOR DRIVEWAY GATE: FOR WALKWAY GATE:
13-57/S 13-62
13-57/D 6-228
6-227 2-263-1
2-263-1
13-57/S 13-57/D
78-3/4" W x 39-3/4" H 78-47/64" W x 39-49/64" H
matl. sizes 5/8" sq., 5/8" x 3/8",
1-3/8" Ø
13-62 2-263-1 6-227 6-228
47-1/4" W x 11-13/16" H 4-1/8" W x 9-41/64" H 12-19/32" W x 44-7/8" H 4-59/64" W x 44-7/8" H
matl. size 5/8" x 3/8" matl. size 5/8" x 3/8"
A LL DIMENSIONS ARE APPR O XIM ATE .
