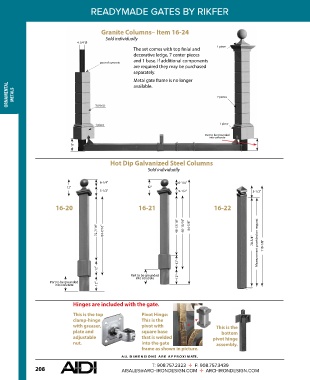

READYMADE GATES BY RIKFER

Granite Columns– Item 16-24
Sold individually
4-3/4" Ø
The set comes with top finial and 1 piece
decorative ledge, 7 center pieces
and 1 base. If additional components
pour of concrete
are required they may be purchased
separately.
Metal gate frame is no longer
ORNAMENTAL METALS 5 pieces 7 pieces
available.

1 piece 1 piece
Part to be grounded
into concrete
12"
DIGGING WITH POUR OF CONCRETE

Hot Dip Galvanized Steel Columns
Sold individually

6-1/4" 6-1/4"
12" 12"
5-1/2" 5-1/2" 5-1/2"

16-20 16-21 16-22

72-7/16" 84-7/16" 48-13/16" 60-13/16" 84-7/8"

78-3/4" Measurement provided on request 118-1/8"

12"
12"
Part to be grounded
into concrete 12"
Part to be grounded
into concrete 12"

Hinges are included with the gate.

This is the top Pivot Hinge:
clamp-hinge This is the
with greaser, pivot with This is the
plate and square base bottom
adjustable that is welded pivot hinge
nut. into the gate assembly.
frame as shown in picture.
A LL DIMENSIONS ARE APPR O XIM ATE .
