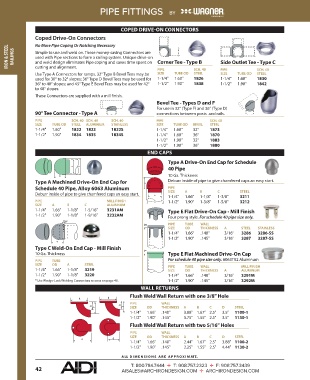

Page 44 - Catalog

PIPE FITTINGS BY

COPED DRIVEON CONNECTORS
Coped Drive-On Connectors
No More Pipe Coping Or Notching Necessary
IRON & STEEL RAILINGS Simple to use and weld on. These money-saving Connectors are Corner Tee - Type B Side Outlet Tee - Type C
used with Pipe sections to form a railing system. Unique drive-on
and weld design eliminates Pipe coping and saves time spent on
cutting and alignment.
PIPE SCH. 40 PIPE SCH. 40
Use Type A Connectors for ramps. 32° Type B Bevel Tees may be SIZE TUBE OD STEEL SIZE TUBE OD STEEL
used for 30° to 32° slopes; 36° Type D Bevel Tees may be used for 1-1/4" 1.60" 1826 1-1/4" 1.60" 1830
36° to 40° slopes; and 45° Type E Bevel Tees may be used for 42° 1-1/2" 1.90" 1838 1-1/2" 1.90" 1842
to 48° slopes.
These Connectors are supplied with a mill nish.
Bevel Tee - Types D and F
For use in 32° (Type F) and 36° (Type D)
90° Tee Connector - Type A connections between posts and rails.
PIPE SCH. 40 SCH. 40 SCH. 40 PIPE SCH. 40
SIZE TUBE OD STEEL ALUMINUM STAINLESS SIZE TUBE OD BEVEL STEEL
1-1/4" 1.60" 1822 1823 1822S 1-1/4" 1.60" 32° 1873
1-1/2" 1.90" 1834 1835 1834S 1-1/4" 1.60" 36° 1870
1-1/2" 1.90" 32° 1883
1-1/2" 1.90" 36° 1880
END CAPS

Type A Drive-On End Cap for Schedule
40 Pipe
c a
10 Ga. Thickness
b
Type A Machined Drive-On End Cap for b Deburr inside of pipe to give chamfered caps an easy start.
Schedule 40 Pipe, Alloy 6063 Aluminum PIPE
Deburr inside of pipe to give chamfered caps an easy start. c SIZE A B C STEEL
1-1/4"
1-3/8"
1-1/8"
1.66"
3211
PIPE MILL FINISH a 1-1/2" 1.90" 1-3/8" 1-5/8" 3212
SIZE A B C ALUMINUM
1-1/4" 1.66" 1-1/8" 1-5/16" 3231AM Type E Flat Drive-On Cap - Mill Finish
1-1/2" 1.90" 1-1/8" 1-9/16" 3232AM Four prong style. For schedule 40 pipe size only.
1 /8"
PIPE TUBE WALL
a
SIZE OD THICKNESS A STEEL STAINLESS
1-1/4" 1.66" .140" 3/16" 3286 3286-SS
1-1/2" 1.90" .145" 3/16" 3287 3287-SS
a
Type C Weld-On End Cap - Mill Finish
10 Ga. Thickness a Type E Flat Machined Drive-On Cap
PIPE TUBE For schedule 40 pipe size only. 6063T52 Aluminum
SIZE OD A STEEL PIPE TUBE WALL MILL FINISH
1-1/4" 1.66" 1-1/8" 3219 SIZE OD THICKNESS A ALUMINUM
1-1/2" 1.90" 1-1/8" 3220 1-1/4" 1.66" .140" 3/16" 3291M
* Use Wedge-Lock Welding Connectors as seen on page 40. 1-1/2" 1.90" .145" 3/16" 3292M
WALL RETURNS
Flush Weld Wall Return with one 3/8" Hole
d d
PIPE WALL
b
b
c c SIZE OD THICKNESS A B C D STEEL
1-1/4" 1.66" .140" 3.88" 1.67" 2.5" 3.5" 1100-1
1-1/2" 1.90" .145" 3.75" 1.55" 2.5" 3.5" 1130-1
Flush Weld Wall Return with two 5/16" Holes
PIPE WALL
a a SIZE OD THICKNESS A B C D STEEL
1-1/4" 1.66" .140" 2.44" 1.67" 2.5" 3.88" 1100-2
1-1/2" 1.90" .145" 2.25" 1.55" 2.5" 4.44" 1130-2
A LL DIMENSIONS ARE APPR O XIM ATE .
