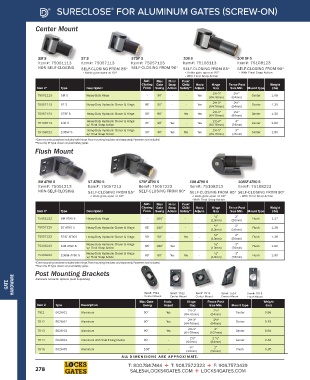

SURECLOSE FOR ALUMINUM GATES ­SCREWON€
®

Center Mount

SM S 57 S 57SF S 108 S 108 SF S
Item#: 75001113 Item#: 75057113 Item#: 75057123 Item#: 75108113 Item#: 75108123
NON-SELF-CLOSING SELF-CLOSING FROM 85° SELF-CLOSING FROM 90° SELF-CLOSING FROM 85° SELF-CLOSING FROM 90°
• Holds gate open at 90° • Holds gate open at 90° • With Final Snap Action
• With Final Snap Action
Self- Max Final Pool/
Closing Gate Snap Child Horiz Hinge Fence Post Weight
Item #* Type Description From Swing Action Safety** Adjust. Gap Size Min. Mount Type (lbs)
2½-3" 2½"
75001113 SM S Heavy-Duty Hinge - 90˚ - - Yes Center 1.08
(64-76mm) (64mm)
2½-3" 2½"
75057113 57 S Heavy-Duty Hydraulic Closer & Hinge 85˚ 90˚ - - Yes Center 1.30
(64-76mm) (64mm)
2½-3" 2½"
75057123 57SF S Heavy-Duty Hydraulic Closer & Hinge 90˚ 90˚ - Yes Yes (64-76mm) (64mm) Center 1.30
Heavy-Duty Hydraulic Closer & Hinge 2½-3" 3"
75108113 108 S w/ Final Snap Action 85˚ 90˚ Yes - Yes (64-76mm) (76mm) Center 1.80
Heavy-Duty Hydraulic Closer & Hinge 2½-3" 3"
75108123 108SF S w/ Final Snap Action 90˚ 90˚ Yes Yes Yes (64-76mm) (76mm) Center 1.80
*Gate mounting brackets included with hinge. Post mounting brackets sold separately. Fasteners not included.
**Use only SF type closers on pool/safety gates.
Flush Mount

SM AT90 S 57 AT90 S 57SF AT90 S 108 AT90 S 108SF AT90 S
Item#: 75001213 Item#: 75057213 Item#: 75057223 Item#: 75108213 Item#: 75108223
NON-SELF-CLOSING SELF-CLOSING FROM 85° SELF-CLOSING FROM 90° SELF-CLOSING FROM 85° SELF-CLOSING FROM 90°
• Holds gate open at 90° • Holds gate open at 90° • With Final Snap Action
• With Final Snap Action
Self- Max Final Pool/
Closing Gate Snap Child Horiz Hinge Fence Post Weight
Item #* Type Description From Swing Action Safety** Adjust. Gap Size Min. Mount Type (lbs)
½" 2"
75001213 SM AT90 S Heavy-Duty Hinge - 180˚ - - - Flush 1.17
(13mm) (50mm)
75057213 57 AT90 S Heavy-Duty Hydraulic Closer & Hinge 85˚ 180˚ - - - ½" 2" Flush 1.38
(13mm) (50mm)
75057223 57SF AT90S Heavy-Duty Hydraulic Closer & Hinge 90˚ 90˚ - Yes - ½" 2" Flush 1.38
(13mm) (50mm)
Heavy-Duty Hydraulic Closer & Hinge ½" 3"
75108213 108 AT90 S 85˚ 180˚ Yes - - Flush 1.90
w/ Final Snap Action (13mm) (76mm)
Heavy-Duty Hydraulic Closer & Hinge ½" 3"
75108223 108SF AT90 S 90˚ 90˚ Yes Yes - Flush 1.90
w/ Final Snap Action (13mm) (76mm)
*Gate mounting brackets included with hinge. Post mounting brackets sold separately. Fasteners not included.
**Use only SF type closers on pool/safety gates.
Post Mounting Brackets
HARDWARE
GATE Aluminum Screw-On Options (Sold Separately)

Item#: 7511
Center Mount
Center Mount
Center Mount Item#: 7512 Item#: 7513 Item#: 7514 Item#: 7515
Center Mount
Flush Mount
Max Gate Horiz. Hinge Fence Post Weight
Item # Type Description Swing Adjust Gap Size Min. Mount Type (lbs)
2½-3" 2½"
7511 6026-01 Aluminum 90˚ Yes Center 0.56
(64-76mm) (64mm)
2½-3" 2½"
7512 6026-02 Aluminum 90˚ Yes Center 0.49
(64-76mm) (64mm)
2½-3" 4"
7513 6026-03 Aluminum 90˚ Yes (64-76mm) (102mm) Center 0.64
2½" 2 ½"
7514 6026-04 Aluminum with Side Fixing Clamp 90˚ - (64mm) (64mm) Center 0.52
½" 2"
7515 6026-05 Aluminum 180˚ - (13mm) (50mm) Flush 0.35
A LL DIMENSIONS ARE APPR O XIM ATE .
