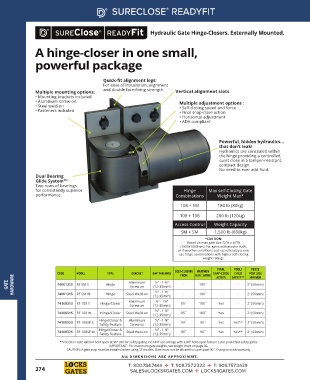

SURECLOSE READYFIT
®

Hydraulic Gate Hinge-Closers. Externally Mounted.

A hinge-closer in one small,

powerful package

Quick-fit alignment legs:
For ease of installation, alignment
Multiple mounting options: and double face-fixing strength. Vertical alignment slots
• Mounting brackets included
• Aluminum screw-on Multiple adjustment options :
• Steel weld-on • Self-closing speed and force
• Fasteners included • Final snap-close action
• Horizontal adjustment
• ADA compliant

Powerful, hidden hydraulics...
that don’t leak!
Hydraulics are concealed within
the hinge providing a controlled,
quiet close in a tamper-resistant,
compact design.
No need to ever add fluid.
Dual Bearing
Glide System TM
Two rows of bearings
for consistently superior Hinge Max self-Closing Gate
performance. Combinations Weight Max*
108 + SM 180 lb (80kg)

108 + 108 260 lb (120kg)
Access Control Weight Capacity
SM + SM 1,500 lb (680kg)
*CAUTION:
Based on max gate size 72”H x 40”W
(1800x1000mm). For gates with greater HxW,
or if weather conditions such as wind play a role,
use hinge combinations with higher self-closing
weight ratings.

FINAL POOL/ FENCE
SELF-CLOSING MAXIMUM
CODE MODEL TYPE BRACKET GAP VARIANCE FROM GATE SWING SNAP-CLOSE SAFETY** POST SIZE
CHILD
HARDWARE Screw-on (12-35mm)
ACTION
MINIMUM
GATE 74001313 RF SM S Hinge Aluminum ½” - 1 ⅜” - 180˚ - - 2” (50mm)
½” - 1 ⅜”
Steel Weld-on
Hinge
RF SM W
74001315
(12-35mm) - 180˚ - - 2” (50mm)
Aluminum ½” - 1⅜”
74108313 RF 108 S Hinge/Closer 85˚ 180˚ Yes - 2” (50mm)
Screw-on (12-35mm)
½” - 1 ½”
74108315 RF 108 W Hinge/Closer Steel Weld-on 85˚ 180˚ Yes - 2” (50mm)
(12-35mm)
Hinge/Closer & Aluminum ½” - 1 ⅜”
74108323 RF 108SF S Safety Feature Screw-on (12-35mm) 90˚ 90˚ Yes Yes** 2” (50mm)
Hinge/Closer & ½” - 1 ⅜”
74108325 RF 108SF W Steel Weld-on 90˚ 90˚ Yes Yes** 2” (50mm)
Safety Feature (12-35mm)

**Yes (SF) = Gate will not hold open at 90° (OK for safety gates). Do NOT use a hinge with a 90° hold-open feature (-) for pool/child safety gates.
IMPORTANT: For maximum gate weights, see weight chart on page 32.
CAUTION: A gate stop must be installed when using SF models. Gate must not be allowed to open past 90˚. Doing so voids warranty.
A LL DIMENSIONS ARE APPR O XIM ATE .
