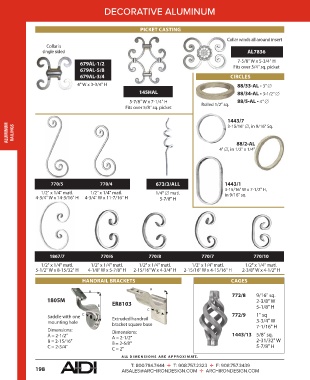

Page 200 - Catalog

DECORATIVE ALUMINUM

PICKET CASTING
Collar winds all around insert
Collar is
single sided AL7836

7-5/8" W x 5-3/4" H
679AL-1/2 Fits over 3/4" sq. picket
679AL-5/8
679AL-3/4 CIRCLES
4" W x 3-3/4" H 88/33-AL - 3"
145HAL 88/34-AL - 3-1/2"
5-7/8" W x 7-1/4" H Rolled 1/2" sq. 88/5-AL - 4"
Fits over 5/8" sq. picket

1443/7
ALUMINUM RAILINGS
3-15/16" , in 9/16" Sq.

88/2-AL
4" , in 1/2" x 1/4"

770/5 770/4 673/3/ALL 1443/1
3-15/16" W x 7-1/2" H,
1/2" x 1/4" matl. 1/2" x 1/4" matl. 1/4" matl.
4-3/4" W x 14-3/16" H 4-3/4" W x 11-7/16" H 5-7/8" H in 9/16" sq.

1867/7 770/6 770/8 770/7 770/10

1/2" x 1/4" matl. 1/2" x 1/4" matl. 1/2" x 1/4" matl. 1/2" x 1/4" matl. 1/2" x 1/4" matl.
5-1/2" W x 8-15/32" H 4-1/8" W x 5-7/8" H 2-15/16" W x 4-3/4" H 2-15/16" W x 4-15/16" H 2-3/8" W x 4-1/2" H
HANDRAIL BRACKETS CAGES

A
A
772/8 9/16" sq.
1805M B 2-3/8" W
B ER8103 5-1/8" H
C
Saddle with one C Extruded handrail 772/9 1" sq
mounting hole bracket square base 3-3/4" W
Dimensions: Dimensions: 7-1/16" H
A = 2-1/2" A = 2-1/2" 1443/13 5/8" sq.
B = 2-15/16" B = 2-5/8" 2-31/32" W
C = 2-3/4" C = 2" 5-7/8" H

A LL DIMENSIONS ARE APPR O XIM ATE .
