Lathe Picture Potpourri
Just a few
pix along the way of my CNC conversion of a Lathemaster 9x30 lathe. It's
still not done as I'm writing this, but there has been a lot of progress
lately...
Whoa, bunch O' parts.
This is my original scavenging, most wound up not being used...

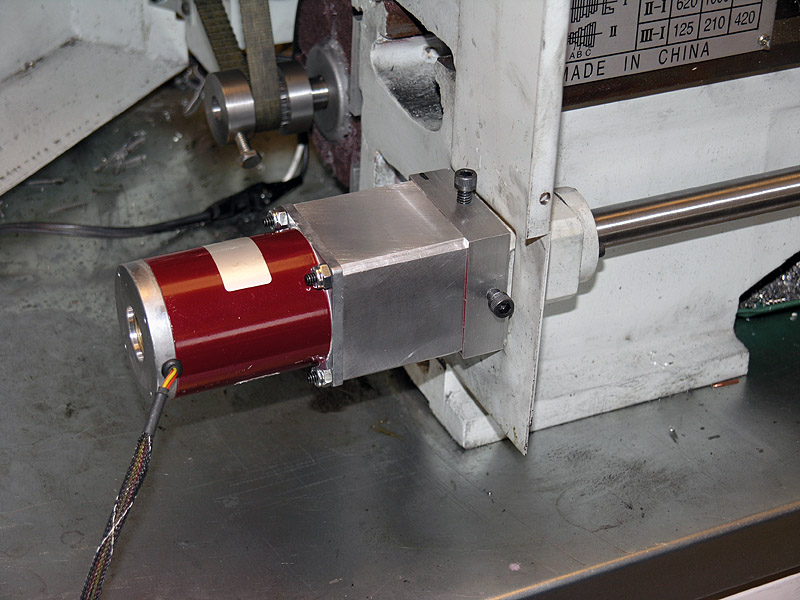

Driving the leadscrew
with a step motor...
Cross slide is gonna
work like this...

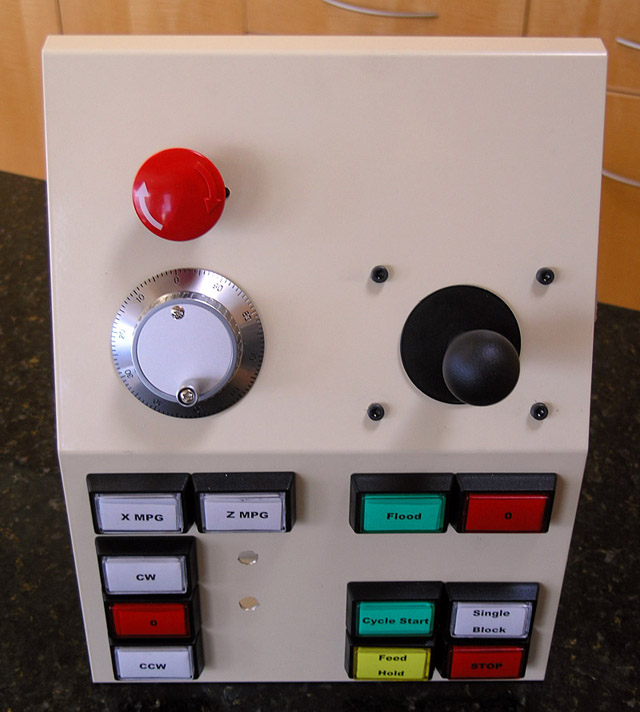

Got panel? MPG, joystick,
E-stop, and lots of buttons. The two holes are for feed and speed override
pots...

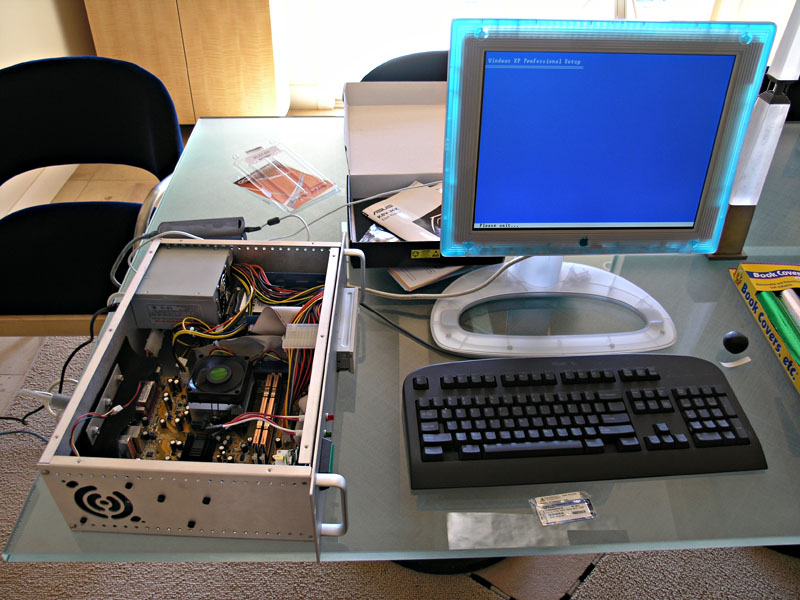

Built a rack mount PC:
Athlon 64, Micro ATX motherboard. Just installing Windows XP here...

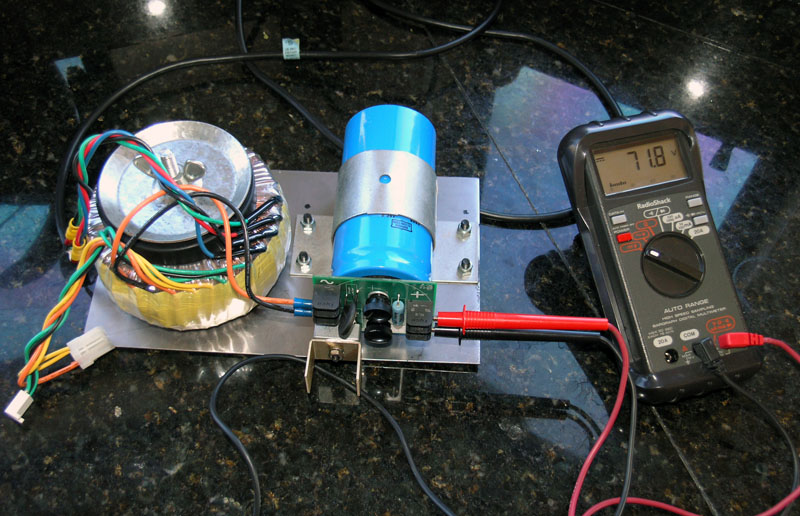

Got the DC Stepper
Power Supply working...

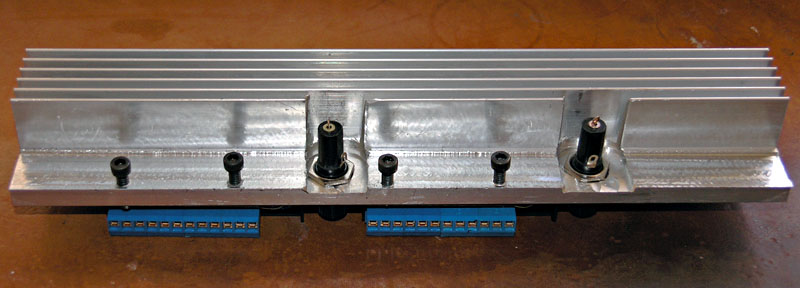

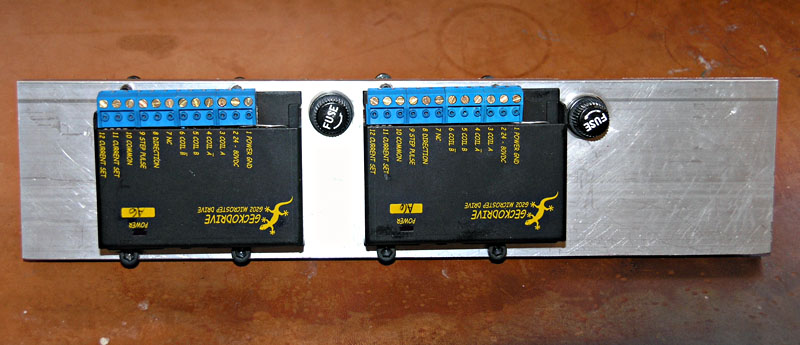

Gecko Bracket from
a heatsink...
Heatsink is pure
aluminum: very gummy to mill!

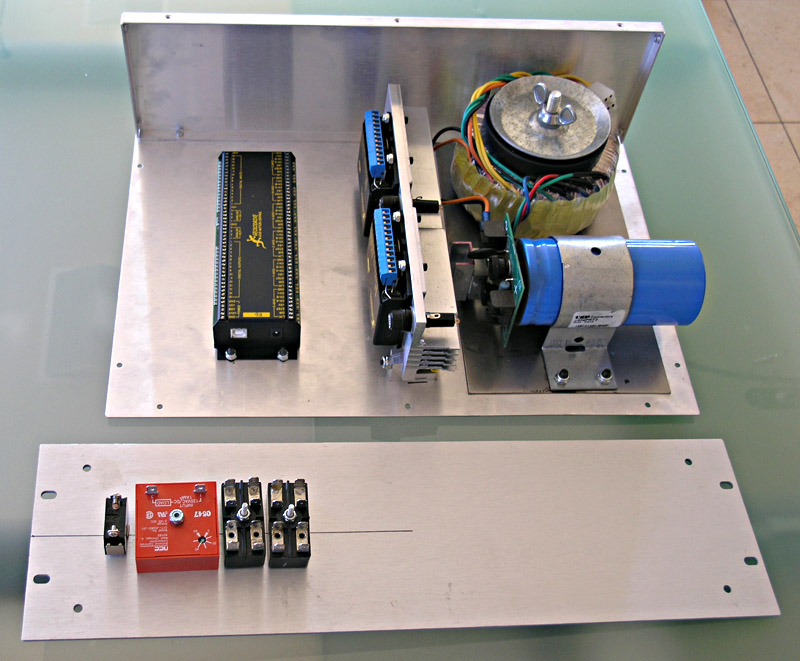

Power supply, GRex,
and Geck Drive tray mounted in the second rack mount enclosure. Front
panel at bottom with more components...

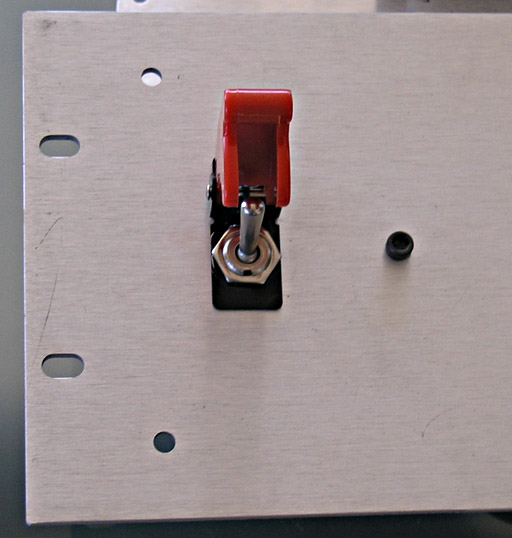

E-Stop / Main Panel
Power in the "On" position, slap it down and it goes "Off"...

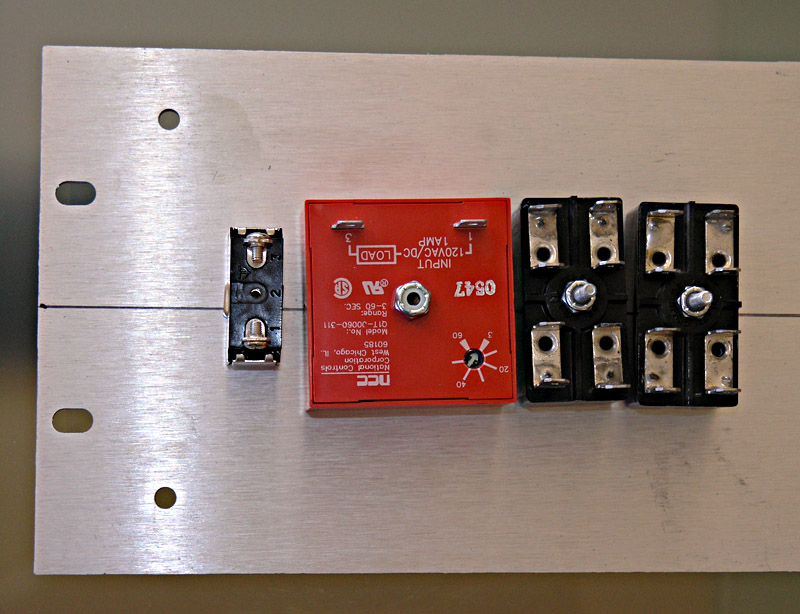

Red beastie is a
"Delay On Make" relay. It holds back power until the GRex has
a chance to boot up...

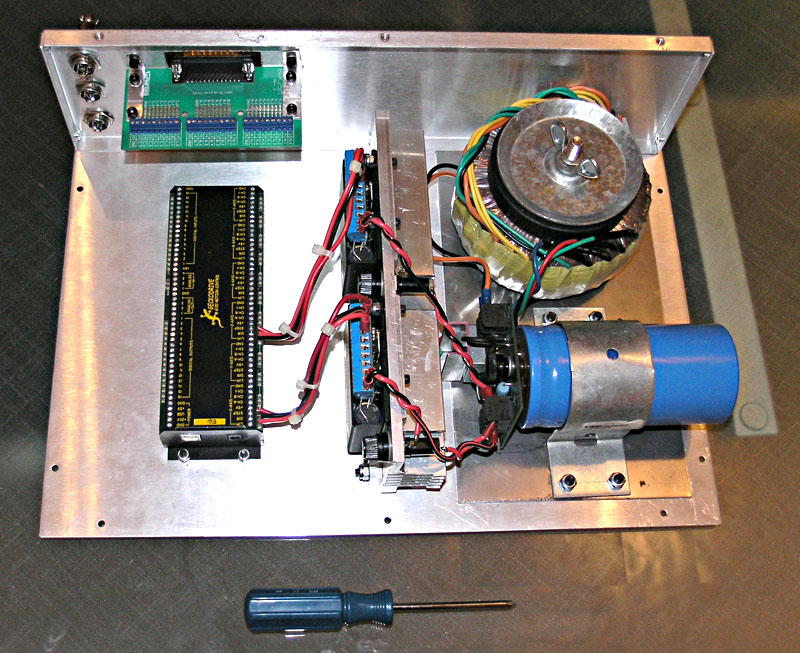

Step/Dir/DC Power wired to Geckos. Microphone connectors for 2 step motors and limit switches installed on back panel. Parallel breakout card for the control panel installed too.

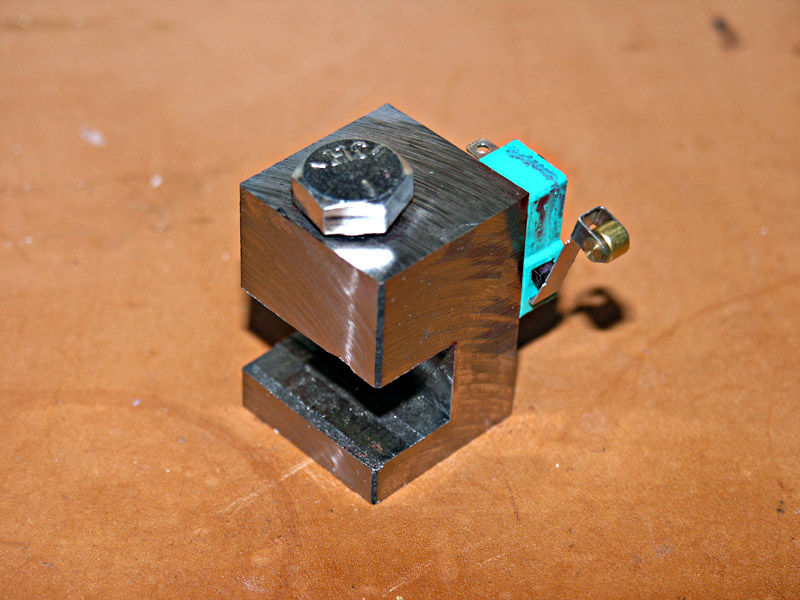

Home/Limit Switch uses a roller microswitch and will be clamped to the lathe bed for the X-axis...
Swing arm rack is nearly done!

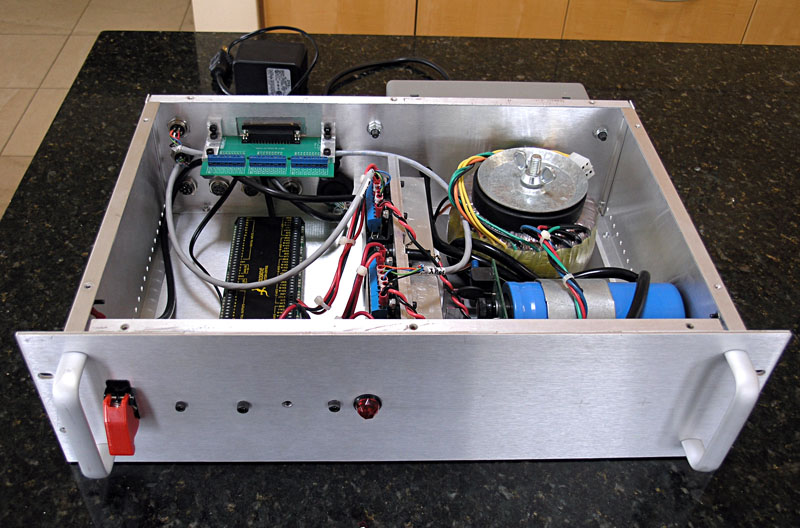

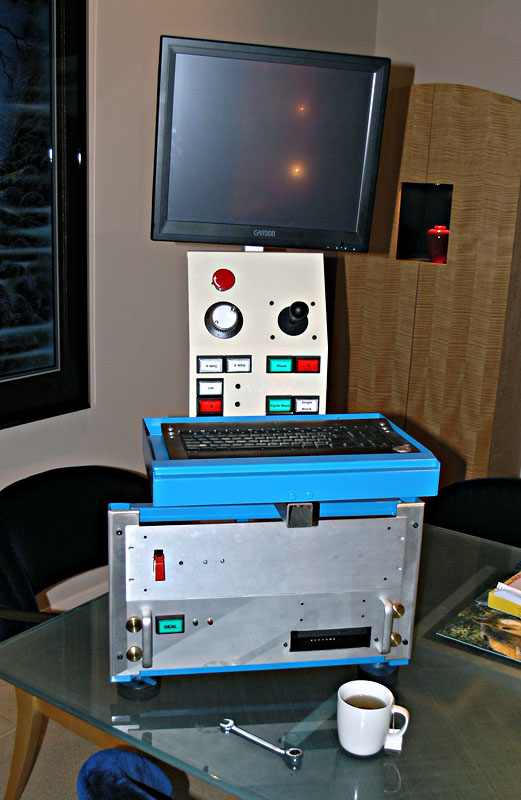

Driver Electronics Enclosure is Finished!

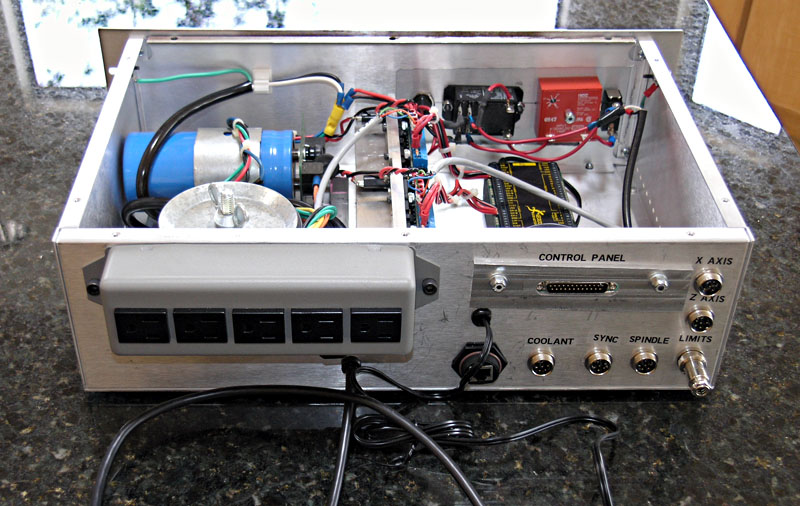

Back Panel Connections are Clearly Labeled...
