Page 93 - CATALOG
P. 93

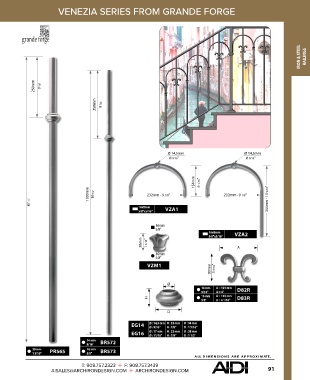

VENEZIA SERIES FROM GRANDE FORGE
IRON & STEEL RAILINGS
250mm 9 7 /8"
250mm 9 7 /8"
Ø 14,5mm Ø 14,5mm
Ø 9/16" Ø 9/16"
154mm 6 1/16"
1000mm 39 3 /8" 232mm - 9 1/8" 232mm - 9 1/8"
47 1 /4" 344mm - 13 9/16"
16x8mm VZA1
5/8"x5/16"
16mm
5/8"
16x8mm VZA2
5/8"x5/16"
30mm 1 3/16" A
16mm
5/8"
VZM1
80mm 3 5/16”
Ø
14 mm A = 101 mm D82R
9/16" A = 4"
16 mm A = 103 mm
H D83R
5/8" A = 4 1/16"
D
EG14 Ø : 14,5 mm H : 23 mm D : 34 mm
D : 1 5/16"
H : 7/8"
Ø : 9/16"
EG16 Ø : 17 mm H : 23 mm D : 38 mm
H : 7/8"
D : 1 1/2"
Ø : 11/16"
14 mm BR572
9/16"
30 mm 16 mm
1 3/16" PR565 5/8" BR573
A LL DIMENSIONS ARE APPR O XIM ATE .
T: 908.757.2323 ✛ F: 908.757.3439
AISALES@ARCHIRONDESIGN.COM ✛ ARCHIRONDESIGN.COM 91
