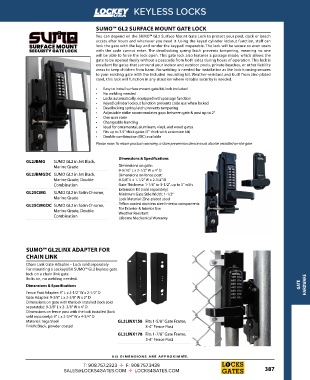

Page 389 - CATALOG

KEYLESS LOCKS

SUMO™ GL2 SURFACE MOUNT GATE LOCK

You can depend on the SUMO™ GL2 Surface Mount Gate Lock to protect your pool, dock or beach
access after hours and whenever you need it. Using the keyed cylinder lockout function, staff can
lock the gate with the key and render the keypad inoperable. The lock will be secure so even users
with the code cannot enter. The deadlocking spring latch prevents tampering, meaning no one
will be able to force the lock open. This gate lock also features a passage mode, which allows the
gate to be opened freely without a passcode from both sides during hours of operation. This lock is
excellent for gates that surround your indoor and outdoor pools, private beaches, or other liability
areas to keep children from harm. No welding is needed for installation as the lock housing secures
to your existing gate with the included mounting kit. Weather-resistant and built from zinc-plated
steel, this lock will function in any situation where reliable security is needed.
• Easy to install surface mount gate kit, lock included
• No welding needed
• Locks automatically, equipped with passage function
• Keyed cylinder lockout function prevents code use when locked
• Deadlocking spring latch prevents tampering
• Adjustable strike accommodates gaps between gate & post up to 2"
• One user code
• Changeable handing
• Ideal for ornamental, aluminum, vinyl, and wood gates
• Fits up to 3.5" thick gates (5" thick with extension kit)
• Double combination (DC) available
Please note: To retain product warranty, a slam prevention device must also be installed on the gate

Dimensions & Specifications
GL2JBMG SUMO GL2 in Jet Black,
Marine Grade Dimensions on gate:
9-5/16" L x 2-1/2" W x 4" D
GL2JBMGDC SUMO GL2 in Jet Black, Dimensions on fence post:
Marine Grade, Double 8-5/8" L x 1-1/2" W x 2-1/4" D
Combination Gate Thickness: 1-1/4" to 3-1/2", up to 5" with
Extension Kit (sold separately)
GL2SCMG SUMO GL2 in Satin Chrome, Minimum Gate Stile Width: 1-1/2"
Marine Grade Lock Material: Zinc-plated steel
GL2SCMGDC SUMO GL2 in Satin Chrome, Teflon coated stainless steel interior components
Marine Grade, Double For Exterior & Interior Use
Weather Resistant
Combination Lifetime Mechanical Warranty

SUMO™ GL2LINX ADAPTER FOR
CHAIN LINK

Chain Link Gate Adapter – Lock sold separately
For mounting a LockeyUSA SUMO™ GL2 keyless gate
lock on a chain link gate
Bolts on, no welding needed.
Dimensions & Specifications GATE HARDWARE
Fence Post Adapter: 9" L x 2-1/2" W x 2-1/2" D
Gate Adapter: 9-3/8" L x 2-3/8" W x 2" D
Dimensions on gate with the lock installed (lock sold
separately): 9-3/8" L x 2- 3/8" W x 4" D
Dimensions on fence post with the lock installed (lock
sold separately): 9" L x 2-3/4" W x 4-3/4" D
Material: 16ga Steel GL2LINX158 Fits 1-5/8" Gate Frame,
Finish: Black, powder coated 3-4" Fence Post
GL2LINX178 Fits 1-7/8" Gate Frame,
3-4" Fence Post

A LL DIMENSIONS ARE APPR O XIM ATE .
