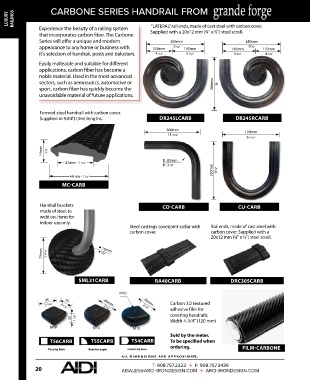

LUXURY RAILINGS CARBONE SERIES HANDRAIL FROM

Experience the beauty of a railing system “LATERAL” rail ends, made of cast steel with carbon cover.
that incorporates carbon fiber. The Carbone Supplied with a 20x12 mm (¾" x ½") steel scroll.
Series will offer a unique and modern 250mm 250mm
appearance to any home or business with 110mm 9 7 /8” 140mm 140mm 9 7 /8” 110mm
it's selection of handrail, posts and balusters. 4 5 /16” 5 9 /16” 5 9 /16” 4 5 /16”

Easily malleable and suitable for different
applications, carbon fiber has become a
noble material. Used in the most advanced
sectors, such as aeronautics, automotive or 200mm 8”
sport, carbon fiber has quickly become the
unavoidable material of future applications.

Formed steel handrail with carbon cover.
Supplied in 9.84ft (3m) lengths. DR245LCARB DR245RCARB

300mm 170mm
11 13 /16”
6 11 /16”

14mm 9 /16”

R : 85mm
27mm - 1 1 /16”
R : 3 3 /8”
250mm 9 7 /8”
44mm - 1 3 /4”
MC-CARB

Handrail brackets CO-CARB CU-CARB
made of steel, to
weld on. Items for
indoor use only.
Steel castings coverjoint collar with Rail ends, made of cast steel with
carbon cover. carbon cover. Supplied with a
20x12 mm (¾" x ½") steel scroll.

75mm 2 15 /16”  5 /8”
 16mm

SML31CARB RA40CARB DRC305CARB

M10
45 55
1 13 /16” 2 3 /16” 60mm 2 3 /8” Carbon 3D textured
60mm
adhesive film for
2 3 /8”
covering handrails.
35 1 3 /8” Width 4-3/4" (120 mm)
M10 M10 M10
Sold by the meter.
TS6CARB TS5CARB TS4CARB To be specified when

Passing base Base for angle Extremity base ordering. FILM-CARBONE
