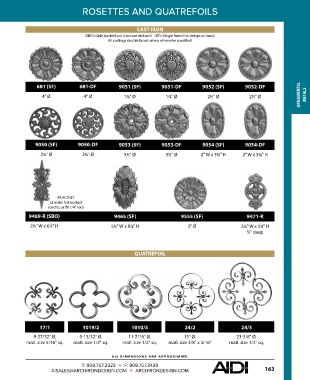

ROSETTES AND QUATREFOILS
CAST IRON
(SBO)=Side backed out (concave on back) (SF)=Single faced (no design on back)
All castings double faced unless otherwise specified.
ORNAMENTAL METALS
681 (SF) 681-DF 9051 (SF) 9051-DF 9052 (SF) 9052-DF
4" Ø 4" Ø 1⅞" Ø 1⅞" Ø 2½" Ø 2½" Ø
9050 (SF) 9050-DF 9053 (SF) 9053-DF 9054 (SF) 9054-DF
3⅛" Ø 3⅛" Ø 3½" Ø 3½" Ø 2" W x 3⅜" H 2" W x 3⅜" H
PAIR ONLY
(2 make full-bodied
rosette, or fit 1/4" rod)
9469-R (SBO) 9465 (SF) 9555 (SF) 9471-R
2½" W x 6½" H 5¼" W x 8⅞" H 3" Ø 3⅛" W x 5¼" H
¾" deep
QUATREFOIL
17/1 1019/2 1010/3 24/2 24/3
9-27/32" Ø, 9-13/32" Ø, 11-7/16" Ø, 15" Ø, 23-5/8" Ø,
matl. size 5/16" sq. matl. size 1/2" sq. matl. size 1/2" sq. matl. size 3/8" x 3/16" matl. size 1/2" sq.
A LL DIMENSIONS ARE APPR O XIM ATE .
