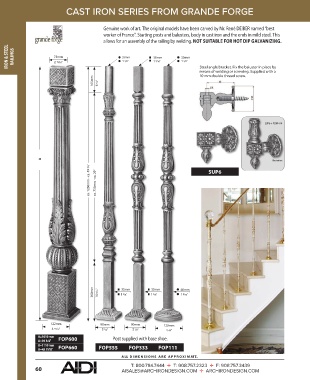

CAST IRON SERIES FROM GRANDE FORGE

Genuine work of art. The original models have been carved by Mr. René DEIBER named “best
worker of France”. Starting posts and balusters, body in cast iron and the ends in mild steel. This
allows for an assembly of the railing by welding. NOT SUITABLE FOR HOT DIP GALVANIZING.
IRON & STEEL RAILINGS 75mm 35mm 30mm 35mm

1 3 /16"
1 3 /8"
1 3 /8"
2 15 /16"
Steel angle bracket. Fix the baluster in place by
means of welding or screwing. Supplied with a
10 mm double thread screw.
165mm 6 1 /2"

SUP6 + FOM 414

A Illustration
ca. 1260mm - ca. 49 5 /8" ca. 735mm - ca. 29" SUP6

360mm 14 3 /16" 1 3 /8"1 33 ///8" 35mm 40mm
35mm
35mm
35mm
35mm
35mm
35mm
35mm
35mm
35mm
1 3 /8"/8"
1 333
1 9 /16"
122mm 90mm 90mm 120mm
4 13 /16" 3 1 /2" 3 1 /2" 4 3 /4"
A=1010 mm FOP600 Post supplied with base shoe.
A=39 3/4"
A=1110 mm
A=43 11/16" FOP660 FOP555 FOP333 FOP111
A LL DIMENSIONS ARE APPR O XIM ATE .
