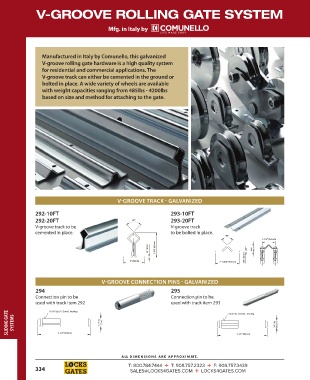

V-GROOVE ROLLING GATE SYSTEM

Manufactured in Italy by Comunello, this galvanized
V-groove rolling gate hardware is a high quality system
for residential and commercial applications. The
V-groove track can either be cemented in the ground or
bolted in place. A wide variety of wheels are available
with weight capacities ranging from 485lbs - 4200lbs
based on size and method for attaching to the gate.

VGROOVE TRACK GALVANIZED

292-10FT 293-10FT
292-20FT 90° 293-20FT
V-groove track to be V-groove track
cemented in place. to be bolted in place.
90°
1-1/2” (42mm)
1/8” (3mm) 2-3/8” (60mm) 9/16” 14mm)
1/8” (3mm)
2” (50mm) 2-11/64” (55mm)

VGROOVE CONNECTION PINS GALVANIZED
294 295
Connection pin to be Connection pin to be
used with track item 292 used with track item 293

SLIDING GATE SYSTEMS 3-1/2” (90mm) 11/16” dia. (17mm) 25/64” dia. (10mm) knurling 3/8” dia. (9.5mm)
11/16” dia. (17.5mm) knurling

3-1/2” (90mm)
