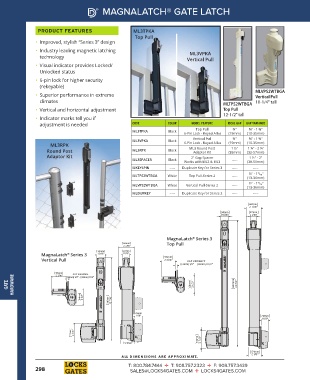

MAGNALATCH® GATE LATCH

PRODUCT FEATURES ML3TPKA
Top Pull
• Improved, stylish “Series 3” design
• Industry leading magnetic latching ML3VPKA
technology Vertical Pull
• Visual indicator provides Locked/
Unlocked status
• 6-pin lock for higher security
(rekeyable)
MLVPS2WTBGA
• Superior performance in extreme Vertical Pull
climates 10-1/4" tall
MLTPS2WTBGA
• Vertical and horizontal adjustment Top Pull
12-1/2" tall
• Indicator marks tell you if
adjustment is needed CODE COLOR MODEL FEATURE IDEAL GAP GAP VARIANCE
Top Pull ¾” ⅜” - 1 ⅜”
ML3TPKA Black
6-Pin Lock - Keyed Alike (19mm) (10-35mm)
Vertical Pull ¾” ⅜” - 1 ⅜”
ML3VPKA Black
ML3RPK 6-Pin Lock - Keyed Alike (19mm) (10-35mm)
1 ¼" - 2 ¼”
1 ½”
Round Post ML3RPK Black ML3 Round Post (38mm) (32-57mm)
Adaptor Kit
Adaptor Kit 2" Gap Spacer 1 ½" - 2”
ML3SPACER Black -----
Works with ML2 & ML3 (38-50mm)
MKEY6PIN ----- Duplicate Key for Series 3 ----- -----
½" - 1⁷/₁₆”
MLTPS2WTBGA White Top Pull-Series 2 ----- (13-36mm)
½" - 1⁷/₁₆”
MLVPS2WTBGA White Vertical Pull-Series 2 -----
(13-36mm)
MLDUPKEY ----- Duplicate Key for Series 2 ----- -----

62mm
2 7/16"
34mm 27mm
1 5/16" 1 1/16"

MagnaLatch Series 3
®

62mm Top Pull
2 7/16"
34mm 27mm
MagnaLatch Series 3 1 5/16" 1 1/16" 56mm
®
Vertical Pull 2 3/16" GAP VARIANCE
[13mm] 1/2" - [38mm] 1 1/2"

56mm [13mm] 1/2" - [38mm] 1 1/2"
GAP VARIANCE
2 3/16"
HARDWARE
GATE 64mm 2 1/2" 520mm 20 1/2"
64mm 2 1/2"
316mm 12 7/16"

29mm
1 1/8" 29mm
1 1/8"

73mm 2 7/8"
73mm
54mm 2 7/8"
2 1/8"

54mm
2 1/8"
A LL DIMENSIONS ARE APPR O XIM ATE .
