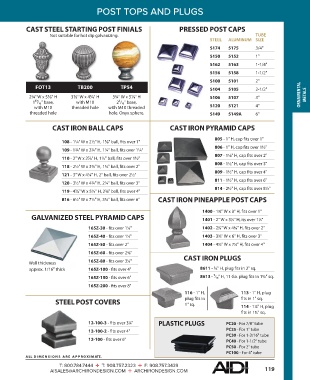

Page 121 - Catalog

POST TOPS AND PLUGS

CAST STEEL STARTING POST FINIALS PRESSED POST CAPS
Not suitable for hot dip galvanizing. TUBE
STEEL ALUMINUM SIZE
5174 5175 3/4"
5150 5152 1"
5162 5163 1-1/4"
5156 5158 1-1/2"
5100 5101 2"
FOT13 TB200 TP54 5104 5105 2-1/2"
2¾" W x 5⅜" H 3⅛" W x 4¾" H 3¾" W x 5¼" H 5106 5107 3" ORNAMENTAL METALS
1/" base, with M10 2/" base,
with M10 threaded hole with M10 threaded 5120 5121 4"
threaded hole hole. Onyx sphere. 5149 5149A 6"

CAST IRON BALL CAPS CAST IRON PYRAMID CAPS

805 - 1" H, cap ts over 1"
108 - 1¼" W x 2½" H, 1⅛" ball, ts over 1"
806 - 1" H, cap ts over 1½"
109 - 1¾" W x 2¾" H, 1¼" ball, fits over 1¼"
807 - 1¼" H, cap ts over 2"
110 - 2" W x 2⅞" H, 1¼" ball, fits over 1½"
808 - 1½" H, cap ts over 3"
118 - 2½" W x 3¾" H, 1¾" ball, fits over 2"
809 - 1½" H, cap ts over 4"
121 - 3" W x 4¼" H, 2" ball, fits over 2½"
811 - 1½" H, cap ts over 6"
120 - 3½" W x 4¾" H, 2¼" ball, fits over 3"
814 - 2½" H, cap ts over 8½"
119 - 4⅜" W x 5½" H, 2¾" ball, fits over 4"
816 - 6½" W x 7½" H, 3¾" ball, fits over 6" CAST IRON PINEAPPLE POST CAPS

1400 - 1¾" W x 3" H, fits over 1"
GALVANIZED STEEL PYRAMID CAPS 1401 - 2" W x 3½" H, its over 1½"

165Z-30 - ts over 1¼" 1402 - 2⅞" W x 4⅝" H, fits over 2"
165Z-40 - ts over 1½" 1403 - 3⅝" W x 6" H, fits over 3"
165Z-50 - ts over 2" 1404 - 4⅝" W x 7¼" H, fits over 4"
165Z-60 - ts over 2⅜"

Wall thickness 165Z-80 - ts over 3¼" CAST IRON PLUGS
approx. 1/16" thick 165Z-100 - ts over 4" 8611 - ¾" H, plug ts in 2" sq.
165Z-150 - ts over 6" 8613 - ⁄" H, 11 Ga. plug ts in 1½" sq.
165Z-200 - ts over 8"
116 - 1" H, 113 - 1" H, plug
STEEL POST COVERS plug ts in ts in 1" sq.
1" sq.
114 - 1⅛" H, plug
ts in 1¼" sq.
12-100-3 - ts over 3¼" PLASTIC PLUGS PC20 - For 7/8" tube
12-100-2 - ts over 4" PC25 - For 1" tube
PC30 - For 1-3/16" tube
12-100 - ts over 6" PC40 - For 1-1/2" tube
PC50 - For 2" tube
PC100 - For 4" tube
A LL DIMENSIONS ARE APPR O XIM ATE .
T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
AISALES@ARCHIRONDESIGN.COM ARCHIRONDESIGN.COM 119
