Product Description

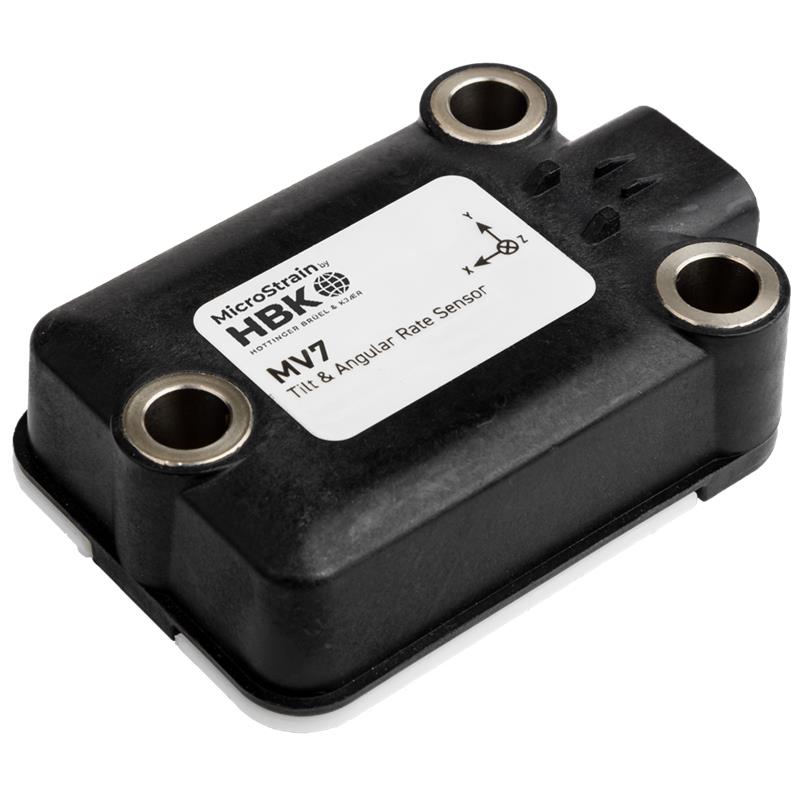

The MicroStrain MV7-AR gyro-stabilized inclinometer delivers precision measurements of dynamic inclination, acceleration, and angular rate in challenging environments such as those encountered by heavy-duty construction, off-highway, agriculture, and trucking vehicles.

The MicroStrain MV7-AR utilizes the power of a sophisticated Auto-Adaptive Extended Kalman Filter (EKF) to remove errors associated with vibration, sudden linear motions, and quake, resulting in a true reading of inclination under all conditions.

MicroStrain's state-of-the-art temperature compensation and calibration assures error-free performance over the full operational temperature range.The compact size, wide 4.5 to 36 V power range, IP68 / IP69K rating, and CAN J1939 communications interface options make the MV7-AR a single part solution for a full range of vehicle sizes and applications. You must specify communications protocol at time of order.

Key features

Measurement Performance

• 6-DOF gyro-stabalized inclinometer
• Full accuracy over the entire operational temperature range of -40°C to +85°C
• Auto-adaptive EKF provides superior dynamic accuracy
• Based on Microstrain by HBK's proven 7th generation industrial/aerospace solid-state MEMS gyro technology

Ruggedized for off-highway use

• Compact and rugged reinforced PBT housing is fully sealed for immersion, pressure wash (IP68/IP69K)
• Low-cost, rugged, reliable AMPSEAL 16 connector
• Optional metal guard plate protects sensor and connector and allows connector insertion and removal

Flexible Deployment Options

• SAE J1939 communication
• Simple sensor-to-vehicle-frame alignment, install in any orientation
• Wide power input range (4.5VDC - 36 VDC)
• User-settable parameters

Applications

• Auto steer and terrain compensation
• Dynamic incline detection (roll, pitch, rotation)
• Vehicle stability and leveling
• Platform control , alignment, and stabalization
• Bucket/stick/boom angle
• Impact detection
• Operator Feedback
• Precision navigation



Internal sensors

• 3-axis accelerometer
• 3-axis gyroscope

Supported part numbers

Name	Part Number	Description
MV7-AR	6244-7790	Ruggedized attitude reference/IMU with J1939
